Hot Rolled Technique NXF UNS N04400/NiCu30Fe/NA12/Nu13 Monel 400 Alloy Plate of Nickel Plate for Industrial Applications

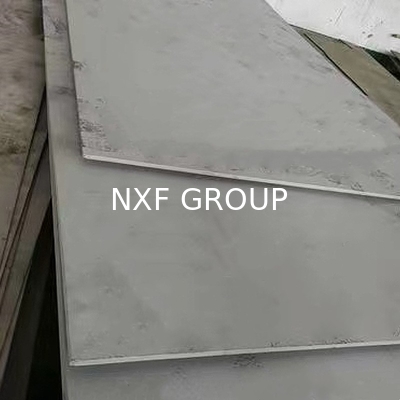

Large Image : Hot Rolled Technique NXF UNS N04400/NiCu30Fe/NA12/Nu13 Monel 400 Alloy Plate of Nickel Plate for Industrial Applications

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	Plate

Payment & Shipping Terms:

Minimum Order Quantity:	10 tons
Price:	$150.00/tons 10-19 tons

Contact Now

Detailed Product Description

Type:	Nickel Plate	Application:	Aerospace And Chemical Processing Industries
Grade:	Monel 400	Ni (Min):	63%
Resistance (μΩ.m):	54.710 -8 Ohmm 54.710 -6 Ohmcm	Powder Or Not:	Not Powder
Ultimate Strength (≥ MPa):	550 MPa	Elongation (≥ %):	40
Product Name:	Monel 400 Alloy Plate	Material:	UNS N04400/NiCu30Fe/NA12/Nu13
Technique:	Hot Rolled	Length:	According To Clients Request
Width:	600mm~1500mm	Thickness:	0.12-5.0mm
MOQ:	1 Ton	Package:	Standard/Customer
Weight:	3-8 Tons	Packing:	Seaworthy Standard Packing

Product Description

Monel 400 Plate is a copper nickel alloy made metallic plate. The material has good ductility and corrosion resistant to a variety of corrosive media. The material also has high operating temperatures ranging from cryogenic temperatures up to 1000F. The Monel 400 Plate has good pitting corrosion resistance as well. The mechanical properties vary from the cold rolled or hot rolled procedures. The plates come under the ASTM B127 specifications can range in dimensions.

The length of the Nickel Alloy 400 Sheet ranges from 200mm to 6000mm and the width ranges from 1000mm to 2000mm and the thickness varies from 0.3mm to 20mm. The material is also hard with NACE MR 175 hardness score. The Monel 400 Sheet can come in different finishes such as the hot rolled or cold rolled finishes. The material supports, cutting, forming, grinding and polishing operations. The chemical composition of the material includes 63% nickel, iron, 28% copper, carbon, manganese, silicon and sulfur.

Specification

item	value
Place of Origin	China
	Jiangsu
Resistance (μΩ.m)	54.710 -8 Ohmm 54.710 -6 Ohmcm
Powder Or Not	Not Powder
Ultimate Strength (≥ MPa)	550 MPa
Elongation (≥ %)	40
Type	Nickel Plate
Application	Aerospace and chemical processing industries
Grade	Monel 400
Ni (Min)	63%
Model Number	Plate
Brand Name	NXF
Product name	Monel 400 Alloy Plate
Material	UNS N04400/NiCu30Fe/NA12/Nu13
Technique	Hot Rolled
Length	According to clients request
Width	600mm~1500mm
Thickness	0.12-5.0mm
MOQ	1 Ton
Package	Standard/Customer
Weight	3-8 Tons
Packing	Seaworthy Standard Packing
