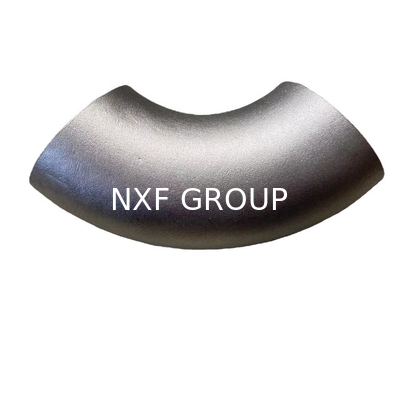

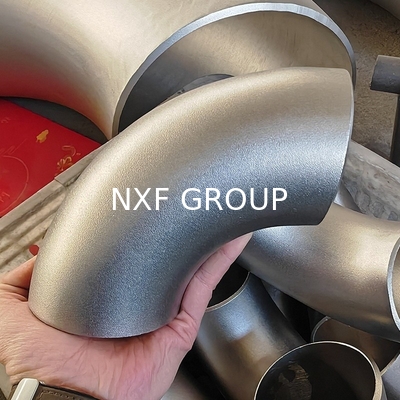

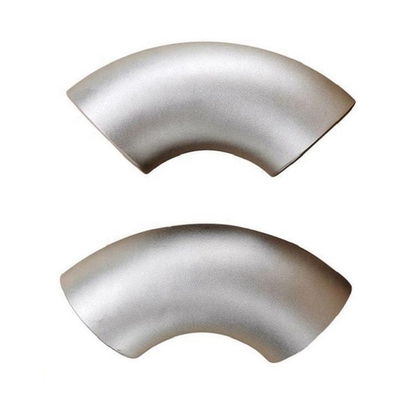

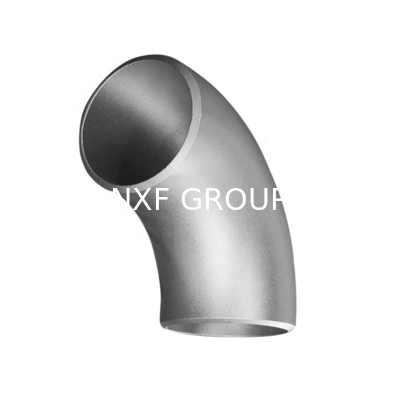

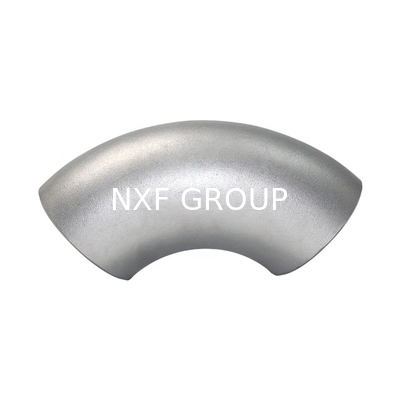

Round Head Code Butt Welded 45 90 Degree Elbow Customizable 317L Elbow ASTM A403 WP317L Forged Stainless Steel Pipe Fittings

Large Image : Round Head Code Butt Welded 45 90 Degree Elbow Customizable 317L Elbow ASTM A403 WP317L Forged Stainless Steel Pipe Fittings

Product Details:

Place of Origin:	Jiangsu, China
Model Number:	317L

Payment & Shipping Terms:

Minimum Order Quantity:	10 kilograms
Price:	$55.00/kilograms 10-99 kilograms

Contact Now

Detailed Product Description

Warranty:	1 Years	Customized Support:	OEM, ODM
Technics:	Forged	Connection:	Welding
Shape:	Equal	Head Code:	Round
Product Name:	ASTM403 WP 317L Seamless Butt-Weld 45 90 Degree Elbow	Material:	317L
Size:	1/2' ~ 48 '	Thickness:	SCH5-SCHXXS
Type:	Butt Welded	MOQ:	1 Pc
Application:	Pipe Lines Connect	Packing:	Standard Seaworthy Packing
Standard:	ANSI JIS DIN ASME	Surface Treatment:	Polishing

Product Description

ASTM A403 WP317L is a molybdenum bearing, low carbon content "L" grade austenitic stainless steel that provides improved corrosion resistance over 304L and 316L stainless steels. The low carbon provides resistance to sensitization during welding and other thermal processes.

317L is non-magnetic in the annealed condition but may become slightly magnetic as a result of welding.

Prosaic Steel and Alloy Supply Complete Range of Products in ASTM A403 WP317L including Elbow, Tee, Reducer, End Caps, Nipple etc.

Specification

Material	AISI 304, AISI 304L, AISI 304H, AISI 316, AISI 316L, AISI 316LN, AISI 316Ti, AISI 309, AISI 317, AISI 317L, ASTM A403 310S, AISI 321, AISI 321H, AISI 347, AISI 347H, AISI 410, AISI 420, AISI 446, AISI 202 DIN 1.4301/7, DIN 1.4401/4, DIN 1.4541, DIN 1.4571
Value Added Service	Polish (Electro & Commercial) Heat Treatment Annealed & Pickled, Sand Blasting Machining Etc.
Standard	ASTM, ASME
End Connection	Butt Weld
Type	Straight, Seamless / Welded / Fabricated Stainless Fittings
Designation	A 403 Pipe Fittings, SA 403 Fittings
Dimension Standard	Manufacturing as per ASME/ANSI B16.9, ASME B16.25, ASME B16.28, ASME B16.49, MSS-SP-43 Fittings
Thickness	Sch 5s Fittings, Sch 10s Fittings, Sch 40s Fittings, Sch 80s Fittings, Sch 160s Fittings, Sch XXS
Size	1/2 Inch to 48 Inch

ASTM A403 WP317L Pipe Fittings Chemical Composition

SS	317	317L
Ni	11 - 14	11 - 15
N	-	-
Cr	18 – 20	18 - 20
C	0.08 max	0.035 max
Si	1 max	1 max
Mn	2 max	2 max
P	0.040 max	0.040 max
S	0.030 max	0.03 max
Mo	3.00 - 4.00	3 – 4

Mechanical Properties ASTM A403 WP317L Pipe Fittings

Density	8.0 g/cm3
Melting Point	1454 °C (2650 °F)
Tensile Strength	Psi – 75000, MPa – 515
Yield Strength (0.2%Offset)	Psi – 30000, MPa – 205
Elongation	35 %

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

FAQ

1. Are you trading company or manufacturer ?
We are manufacturer.

2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
