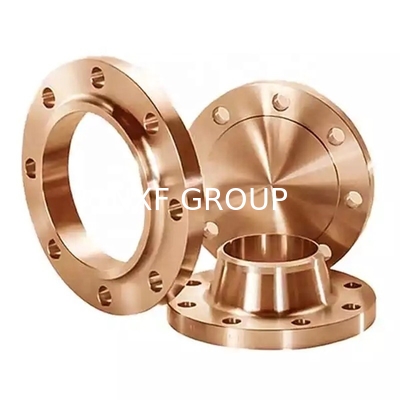

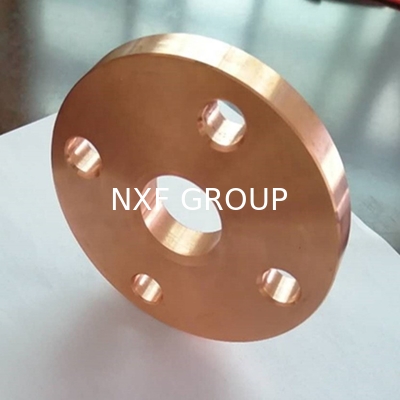

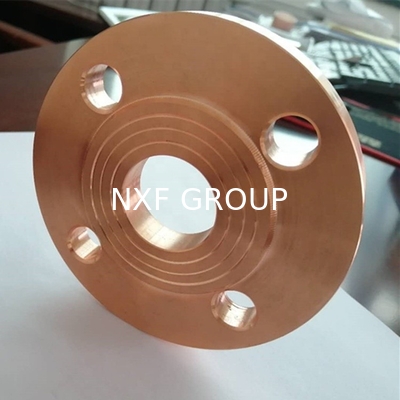

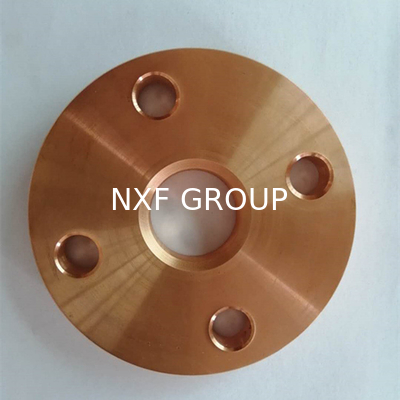

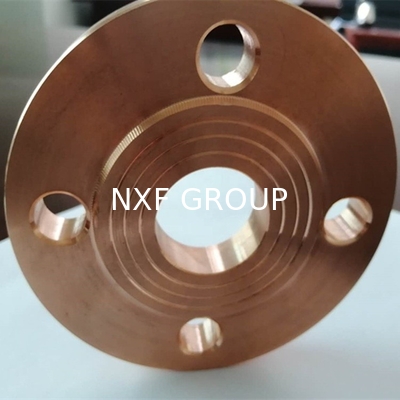

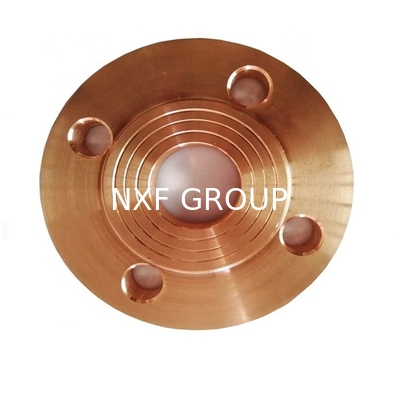

10inch Industrial Slip-On Copper and Nickel Flange Connector ASTM B466 UNS C70600 Size DN10-DN2000 150 -2500 for Industrial

Large Image : 10inch Industrial Slip-On Copper and Nickel Flange Connector ASTM B466 UNS C70600 Size DN10-DN2000 150 -2500 for Industrial

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	ASTM B466 UNS C70600, FLG

Payment & Shipping Terms:

Minimum Order Quantity:	50 kilograms
Price:	$5.00/kilograms 50-499 kilograms

Contact Now

Detailed Product Description

Standard:	ANSI, DIN, GB, ISO, JIS, ASME	Product Name:	Copper And Nickel Flanges
Material:	Copper-nickel Alloy	Type:	WN THREAD BL SW LJ
Application:	Industrial	Size:	DN10-DN2000
Certificate:	ISO9001	Pressure:	Class150/300/600/9001500/2500

Specification

Copper-nickel UNS C70600 has a copper content of not less than 88.6%.
Tabulated below are the mechanical properties of UNS C70600 tubes as a function of heat treatment.

Temper	Tensile Str.	Yield Str.	Elong.	Rockwell
Temper	Tensile Str.	Yield Str.	Elong.					B	C	F	30T
H55	414MPa (60ksi)	393MPa (57ksi)	10%	72	-	100	70
OS025	303MPa (44ksi)	110MPa (16ksi)	42%	15	-	65	26

The chemical composition of UNS C70600 copper alloy is outlined in the following table.

Elements	Content (%)
Nickel, Ni	9.0-11.0
Iron, Fe	1.0-1.8
Zinc, Zn	1.0
Manganese, Mn	1.0
Lead, Pb	0.05
Copper, Cu	Remainder

Equivalent materials to UNS C70600 copper alloy are given in the table below.

ASME SB111	ASME SB171	ASME SB359	ASME SB466	ASME SB467
ASME SB395	ASME SB543	ASTM B111	ASTM B151	ASTM B122
ASTM B171	ASTM B359	ASTM B395	ASTM B432	ASTM B466
ASTM B469	ASTM B543	ASTM B608	DIN 2.0872	MIL C-15726
MIL T-15005	MIL T-16420	MIL T-22214	SAE J461	SAE J463

Product Description

Company Profile

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."

Packing & Delivery

Packaging Details:Plastic film inside , wooden pallets outside , choose the suitable packing,Also it can be customized by the clients' demand.

Delivery detail:According to the quantities and specifications of each order.Normal delivery time is from 15 to 35 days after receiving the deposit.

1. Are you trading company or manufacturer ?
We are manufacturer.

2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to
quantity.

3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
