CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F

CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F
CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F

Large Image :  CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F

Product Details:
Place of Origin: Jiangsu, China
Brand Name: NXF
Certification: DOT certificate, TS16949, ISO9001, CE
Model Number: Forged Union Tee
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: $1.70/pieces 500-999 pieces
Contact Now
Detailed Product Description
Warranty: 1 Years Customized Support: OEM, ODM, OBM
Technics: Forged Connection: Female/Male
Shape: Reducing Head Code: Round
Colo: Yellow Brass Package: Pp Bag + Carton Box
Material: CA360 Brass MOQ: 100
Temperature: -65°F To +250°F (-53°C To +121°C)

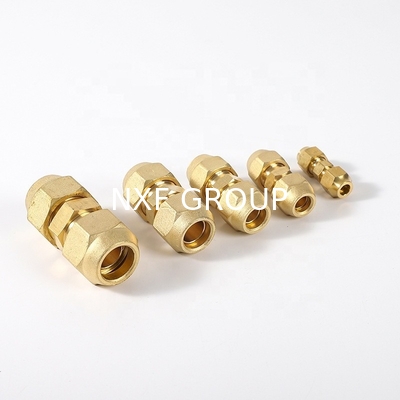

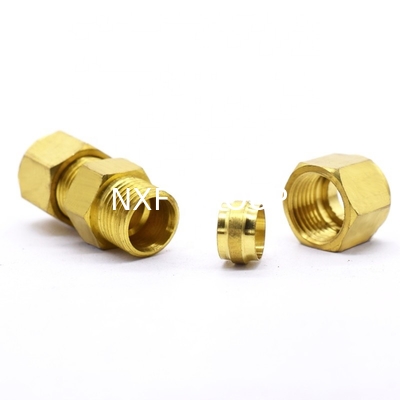

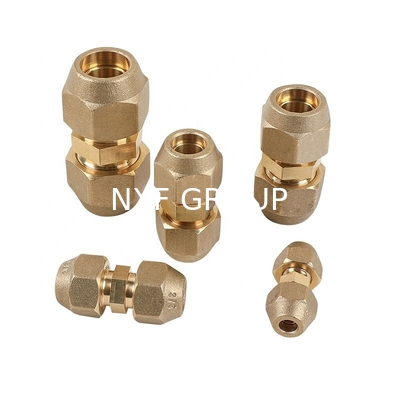

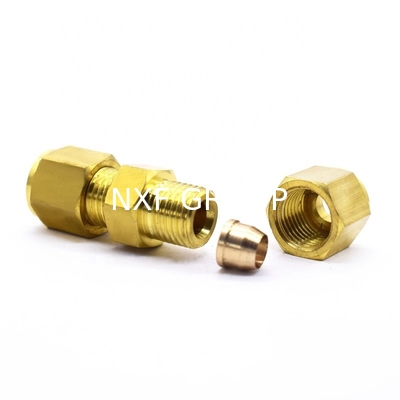

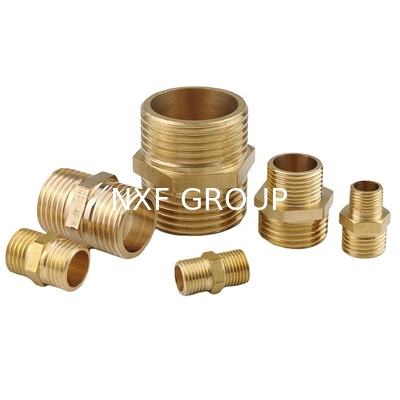

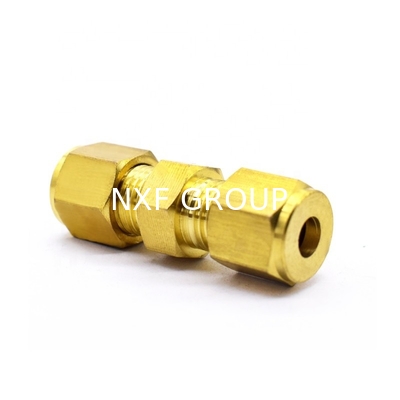

High Quality Forged Brass Male Female Compress Double Barrel Tube Union Straight Fitting

Product Description



Material Brass,Copper,Stainless steel,Plastic (according to customer's requirement)
Package Way Standars Carton+pallet or Customized like Blister all ok
LeadTime 30 days as usual, it will base on the order QTY and delivery due to customer's plan
Payment T/T or L/C
MOQ: 100PCS
Transportation By sea or By air
Equipment Forging Machine, CNC machine,stamping machine, sand blasting machine etc
Customized Customized are welcome
QC Inspection 100% inspection before package and delivery
Certificate ISO9001:2015, ROHS, SGS, Material Certification
Sample Samples and Dimensions report will offer to customer for confirmation
Size 1/8 -1/2Inch
Item Dimensions LxWxH 0.7 x 0.6 x 0.4 inches
Connector Type Compression X Npt Male
Typical Application:
Instrumentation, hydraulic and pneumatic systems.
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on TUBE size. When using plastic tubing, use the working pressure for type used.
Vibration:
Fair resistance - use long nut when greater vibration resistance is needed.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range. (Refer to tubing temperature range.)
Used With:
Aluminum, copper and plastic tubing



CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 0CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 1CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 2CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 3





Company Information

  New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1999, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."



CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 4





Packaging & Shipping

 CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 5CA360 Brass Male Female Compress Double Barrel Tube Union Straight Fitting Suitable for Temperature Range -65°F to 250°F 6



Packaging Details:Plastic film inside , wooden pallets outside , choose the suitable packing,Alos it can be customized by the clients' demand.( Inconel 600)

Delivery detail:According to the quantities and specifications of each order.Normal delivery time is from 30 to 45 days after receiving the deposit.







FAQ



1.   Are you trading company or manufacturer ?

We are manufacturer.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
