Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements

Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements
Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements

Large Image :  Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements

Product Details:
Place of Origin: Jiangsu, China
Model Number: OC-01
Payment & Shipping Terms:
Minimum Order Quantity: 500 kilograms
Price: $8.00/kilograms 500-2999 kilograms
Contact Now
Detailed Product Description
Type: Pancake Coil Copper Pipe, Copper Pair Coils Application: Air Condition Or Refrigerator
Specification: 1/4,3/8,1/2,5/8,3/4,7/8,1,1-1/8 Grade: Copper
Length: 1-50m Cu (Min): 99.9%
Alloy Or Not: Non-Alloy Ultimate Strength (≥ MPa): 241
Elongation (≥ %): 40% Wall Thickness: 0.1mm-2mm
Outside Diameter: 4.0mm-50.0mm Processing Service: Bending, Punching, Cutting
Product Name: Pancake Coil Copper Pipe MOQ: 100pcs
Use For: In Air Conditioning Systems And Refrigeration Systems Standard: AS TM B280, EN 12735-1, AS1571, JIS 3300
Delivery Time: 15-20days Color: Black/White

High Quality Pair Coils Air conditioner pancake coil Ac PE Insulated Copper Tube copper pipe

Product Description

Size Range

Insulated Copper Pipe - Single Coil
size copper tube
outside diameter x
wall thickness (mm)		 insulation thickness    (mm) Insulation inner diameter (mm) length
1/4" 6.35x0.56 8mm / 9mm 8.0 3-50 meters
1/4" 6.35x0.61 8mm / 9mm 8.0
1/4" 6.35x0.71 8mm / 9mm 8.0
1/4" 6.35x0.81 8mm / 9mm 8.0
3/8" 9.52x0.56 8mm / 9mm 12.0
3/8" 9.52x0.61 8mm / 9mm 12.0
3/8" 9.52x0.71 8mm / 9mm 12.0
3/8" 9.52x0.81 8mm / 9mm 12.0
1/2" 12.7x0.56 8mm / 9mm 14.0
1/2" 12.7x0.61 8mm / 9mm 14.0
1/2" 12.7x0.71 8mm / 9mm 14.0
1/2" 12.7x0.81 8mm / 9mm 14.0
5/8" 15.88x0.71 8mm / 9mm 18.0
5/8" 15.88x0.81 8mm / 9mm 18.0
5/8" 15.88x0.91 8mm / 9mm 18.0
5/8" 15.88x1.02 8mm / 9mm 18.0
3/4" 19.05x0.81 8mm / 9mm 22.0
3/4" 19.05x0.91 8mm / 9mm 22.0
3/4" 19.05x1.02 8mm / 9mm 22.0
3/4" 19.05x1.14 8mm / 9mm 22.0
7/8" 22.23x0.91 8mm / 9mm 25.0
7/8" 22.23x1.14 8mm / 9mm 25.0
7/8" 22.23x1.22 8mm / 9mm 25.0
7/8" 22.23x1.40 8mm / 9mm 25.0



Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 0Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 1Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 2Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 3Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 4Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 5









Company Information

 We are one of the Professional manufacturers Exporter Pipeline products in China .Our company was established in 1998, the plant covers 550, 000 square meters and a construction area of 6,8,000square meters, existing 260 workers and 45 technicians. We have five branch factories which can supply the best quality pipes, tubes, fittings flanges and related accessories.

Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 6

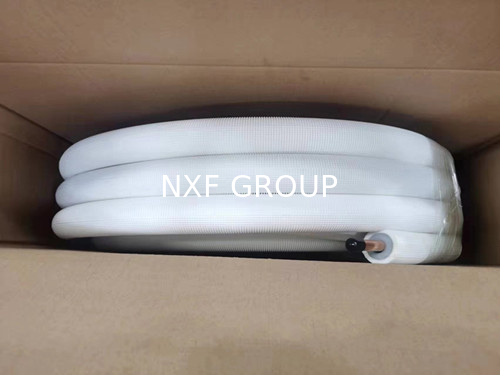

Packaging & Shipping

 Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 7Cutting Non-Alloy Pair Coils Air Conditioner Pancake Coil Ac PE Insulated Copper Tube Copper Pipe for Your Requirements 5



Package:Standard export carton packing Or according to customer requirements.

Delivery time:10-15days after confirming order,detail delivery date should be decided according to production season and order quantity.





FAQ

1. Are you trading company or manufacturer ?

We are manufacturer ,You can see the Alibaba certification.

2. How long is your delivery time?

Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ?

Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?

Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
