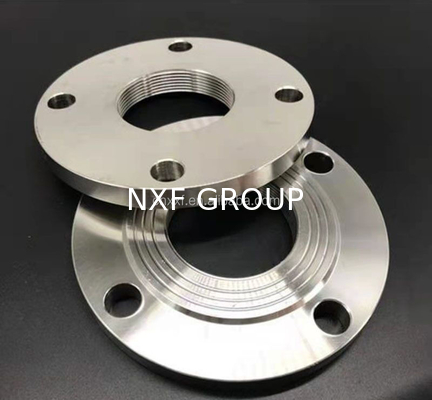

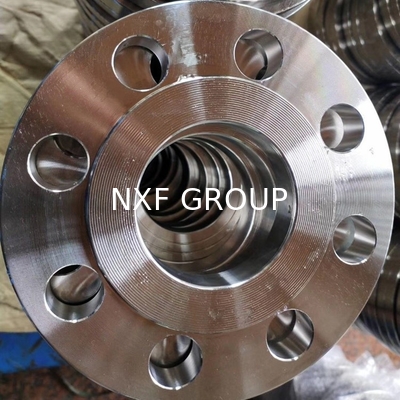

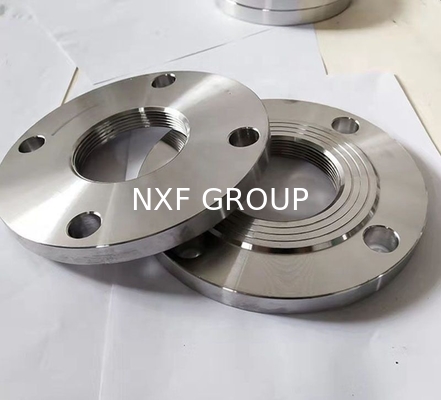

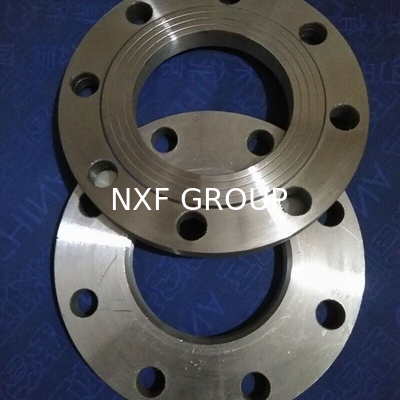

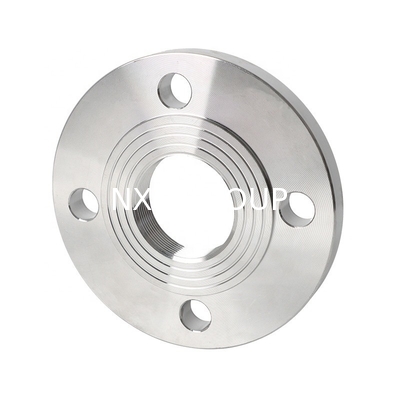

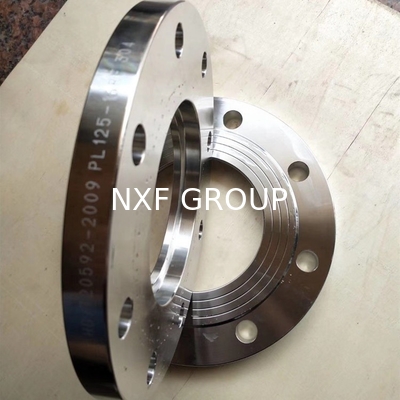

Square Head OD DN 15-600 NXF Slip-On Welding Flange 316/0Cr17Ni12Mo2/1.4401 Stainless Steel Class 150-1500 Pipe Fittings

Large Image : Square Head OD DN 15-600 NXF Slip-On Welding Flange 316/0Cr17Ni12Mo2/1.4401 Stainless Steel Class 150-1500 Pipe Fittings

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$4.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Forged	Connection:	Welding
Shape:	Equal	Head Code:	Square
Product Name:	Slip-On Welding Flange	Material:	Stainless Steel 304/316
OD:	DN 15-600	Class:	150-1500
Application:	Oil,Gas	Standard:	NXF
Packing:	Wooden Box	MOQ:	1 Piece
Connection Method:	Weldng	Usage:	Oil Gas Water Industrial

Product Description

316 stainless steel, 18Cr-12Ni-2.5Mo Due to the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good, and it can be used under harsh conditions; excellent work hardening (non-magnetic). Equipment used in seawater, chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts. Chemical composition of 316 stainless steel: C≤0.08, Si≤1.00, Mn≤2.00, P≤0.035, S≤0.03, Ni:10.0-14.0, Cr:16.0-18.5, Mo:2.0-3.0. Mechanical properties of 316 stainless steel: tensile strength (Mpa) 620 MIN, yield strength (Mpa) 310 MIN, elongation (%) 30 MIN, area reduction (%) 40 MIN, density of 316 stainless steel 8.03 g/cm3, this value is generally used for austenitic stainless steel.

Flat welding flange is a common flange type, which has the advantages of simple production, low cost, and easy installation. Its structural feature is that the flange and the pipeline are connected together by welding, and the welding position is generally at the end of the pipeline. Flat welding flange has a simple structure, good flow performance, and can be applied to various media and pressure requirements. It is widely used in pipeline connection and equipment manufacturing.The connection between the flat welding flange and the pipeline is to insert the pipe into the inner hole of the flange to the appropriate position first, and then lap weld. A flat welding butt welding flange is a flange with a neck and a round pipe transition and butt welded to the pipe. Butt welding flanges are not easy to deform, have good sealing, are widely used, have corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition, the weld is far away from the joint surface, and the joint surface is free from welding temperature deformation.

Specification

Head Code	Square
Customized support	OEM
Connection	Welding
Product name	Slip-On Welding Flange
Material	Stainless Steel 304/316
OD	DN 15-600
Class	150-1500
Application	Oil,Gas
Packing	Wooden Box
MOQ	1 Piece
Connection method	Weldng
Usage	Oil Gas Water Industrial

Packing & Delivery

Company Profile

Other Products

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
