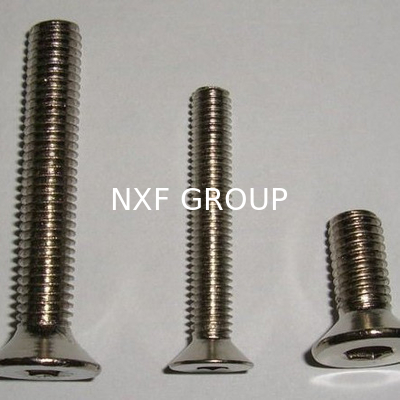

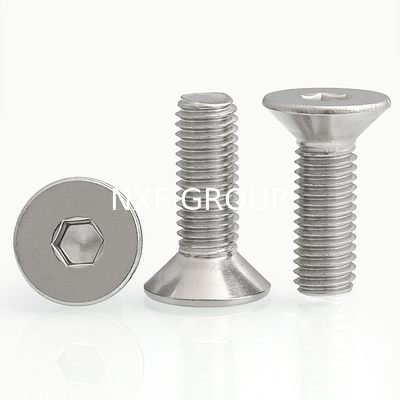

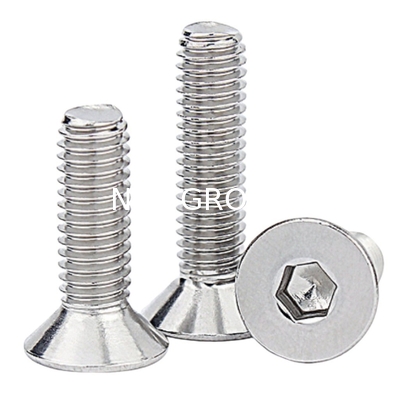

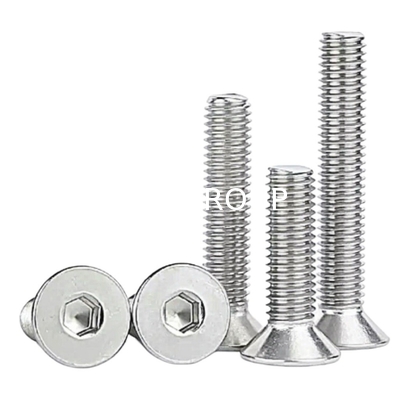

DIN7991 Standard 316 Stainless Steel Flat Head Hex Socket Countersunk Machine Bolt M10 6605- in Inch and Metric System

Large Image : DIN7991 Standard 316 Stainless Steel Flat Head Hex Socket Countersunk Machine Bolt M10 6605- in Inch and Metric System

Product Details:

Place of Origin:	Jiangsu, China, Jiangsu, China
Brand Name:	NXF
Model Number:	M10

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$0.20/pieces 10-49 pieces

Contact Now

Detailed Product Description

Finish:	Plain	Material:	Stainless Steel, 316/0Cr17Ni12Mo2/1.4401
Measurement System:	INCH, Metric	Head Style:	Flat
Standard:	DIN7991, DIN7991	Product Name:	Duplex 2205 Hex Socket Head Bolt
Size:	M6-M10	Surface Treatment:	Plain
Type:	Hex Socket Head Screws	Grade:	S32205
Packing:	Small Packing+Carton Packing+Pallet	MOQ:	1pcs

Product Description

316 stainless steel, 18Cr-12Ni-2.5Mo Due to the addition of Mo, its corrosion resistance, atmospheric corrosion resistance and high temperature strength are particularly good, and it can be used under harsh conditions; excellent work hardening (non-magnetic). Equipment used in seawater, chemical, dye, papermaking, oxalic acid, fertilizer and other production equipment; photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts. Chemical composition of 316 stainless steel: C≤0.08, Si≤1.00, Mn≤2.00, P≤0.035, S≤0.03, Ni:10.0-14.0, Cr:16.0-18.5, Mo:2.0-3.0. Mechanical properties of 316 stainless steel: tensile strength (Mpa) 620 MIN, yield strength (Mpa) 310 MIN, elongation (%) 30 MIN, area reduction (%) 40 MIN, density of 316 stainless steel 8.03 g/cm3, this value is generally used for austenitic stainless steel.

Hexagon socket head bolt are often used in machinery, mainly for the advantages of easy tightening, disassembly, and not easy to slip. The hexagon socket wrench is generally a 90° bend, with one end long and the other short. When using the short side to screw in the screws, holding the long side can save a lot of effort and better tighten the screws. The long end is divided into a round head (hexagonal cylinder similar to a sphere) and a flat head. The round head can be easily inserted into the screw hole for easy disassembly. The manufacturing cost of the external hexagon is much lower than that of the internal hexagon. It also has the advantage that the screw head (the force position of the wrench) is thinner than the internal hexagon, and there are some places where the internal hexagon cannot replace it. In addition, machinery with low cost, low dynamic strength, and low precision requirements uses much fewer internal hexagon screws than external hexagons.

Specification

Finish	Plain
Material	Stainless steel
Measurement system	INCH, Metric
Head Style	HEX
Brand Name	NXF
Model Number	M10
Standard	DIN7991
Place of Origin	Jiangsu, China
Product name	Duplex 2205 Hex socket head screws
Material	Duplex 2205
Size	M6-M10
Standard	DIN7991
Surface treatment	Plain
Type	Hex socket head screws
Grade	S32205
Packing	Small Packing+Carton Packing+Pallet
MOQ	500pcs

Packing & Delivery

Company Profile

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
