Product Details:
Payment & Shipping Terms:
|
Product Name: | Threaded Coupling | Material: | 316H/1Cr17Ni12Mo2/31609 |
---|---|---|---|
Size: | DN 15-1200 | Pressure: | Class 150-2500 |
Standard: | ANSI JIS DIN ASME | MOQ: | 1 Piece |
Connection Method: | Threaded | Application: | Industry |
Packing: | Standard Seaworthy Packing | Brand: | NXF |
Alloy 316H (UNS S31609) is a high carbon modification of Alloy 316 developed for use in elevated temperature service. The alloyhas higher strength at elevated temperatures and is used for structural and pressure vessel applications at temperatures above932°F (500°C). The higher carbon content of 316H also delivers higher tensile and yield strength than 316/316L and its austeniticstructure provides excellent toughness down to cryogenic temperatures.The corrosion resistance of Alloy 316H is comparable to Alloy 316/316L and is superior to Alloy 304/304L in moderately corrosiveenvironments. It is often used in process streams containing chlorides or halides. The alloy resists atmospheric corrosion, aswell as, moderately oxidizing and reducing environments. It also resists corrosion in polluted marine conditions.Alloy 316H is non-magnetic in the annealed condition. It cannot be hardened by heat treatment, however the material will hardendue to cold working. It can be easily welded and processed by standard shop fabrication practices.

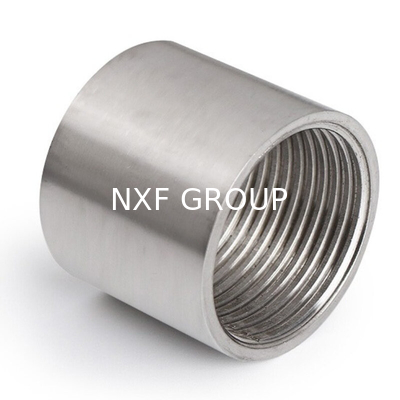

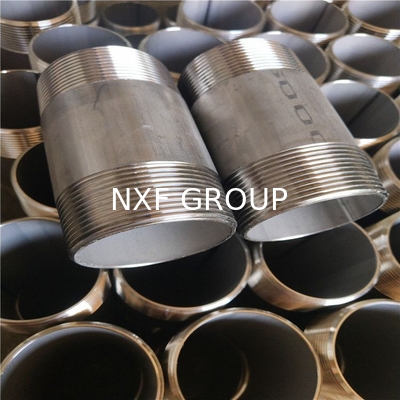

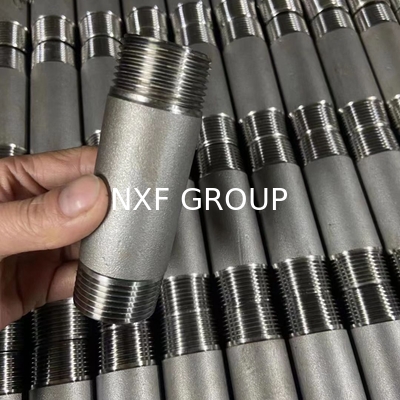

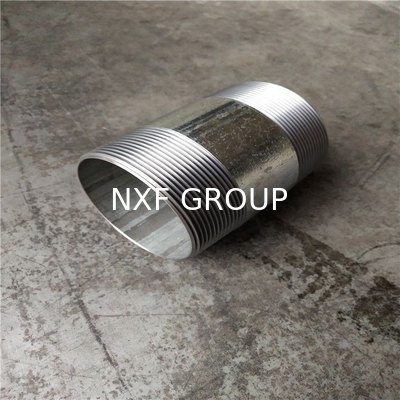

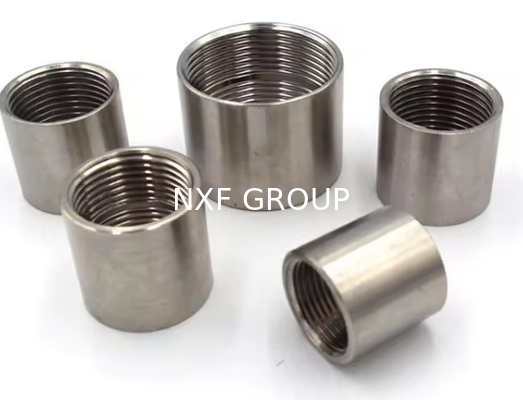

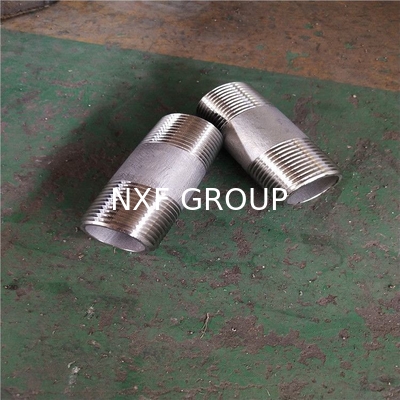

Threaded coupling is an accessory used to connect two pipes, also known as pipe clamp or external joint. It realizes the connection of pipelines conveniently and quickly through threaded connection, and is widely used in civil construction, industry, agriculture and other fields. According to its manufacturing process, it can be divided into two types: forging and casting. Forging refers to heating and forging steel ingots or round bars into shape, and then processing threads on a lathe. Casting refers to melting the steel ingot and pouring it into a fixed pipe hoop mold, and then waiting for it to cool.
316H of Chemical composition and mechanical properties
Product name | Threaded Coupling |
Material | SS316H |
Size | 1/2"-48" DN15-DN1200 |
Thickness | Sch10-xxs(2-60mm) |
Standard | ANSI JIS DIN ASME |
MOQ | 1 Piece |
Connection method | Threaded |
Application | Industry |
Packing | Standard Seaworthy Packing |
Brand | NXF |
