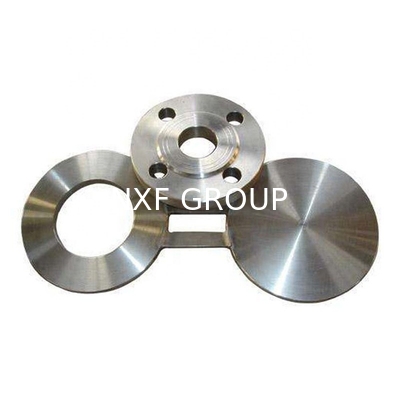

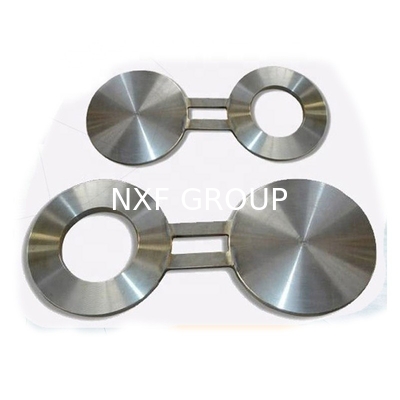

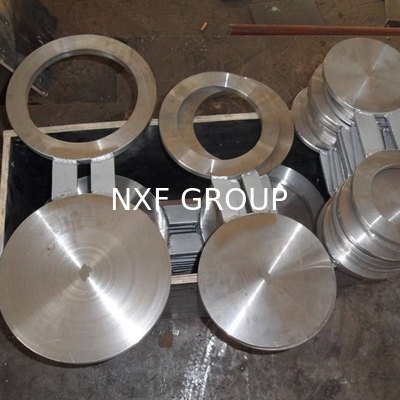

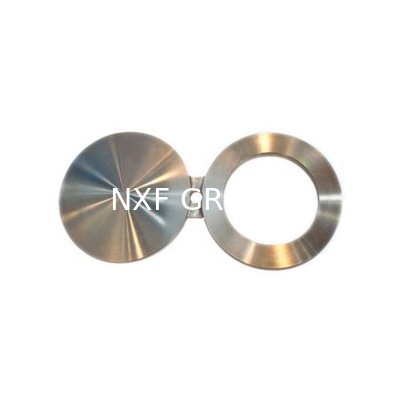

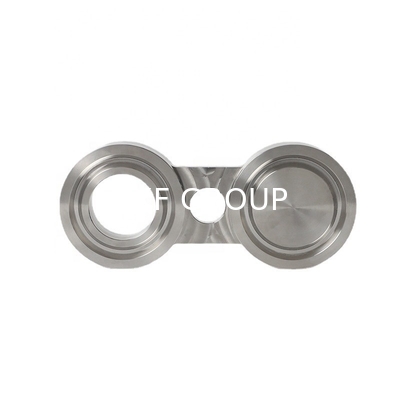

Threaded Connection ANSI B16.48 A105 Size DN15-DN3000 Carbon/Stainless Steel Figure 8 Spectacle Spade Blind Pipe Flange

Large Image : Threaded Connection ANSI B16.48 A105 Size DN15-DN3000 Carbon/Stainless Steel Figure 8 Spectacle Spade Blind Pipe Flange

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	figure 8 blind flange

Payment & Shipping Terms:

Minimum Order Quantity:	50 pieces
Price:	$15.00/pieces 50-99 pieces

Contact Now

Detailed Product Description

Standard:	ANSI, Bs, DIN, GB, ISO, JIS, Jpi, ASME	Product Name:	Figure 8 Spectacle Spade Blind Pipe Flange
Material:	Alloy Steel, Aluminum, Stainless Steel, Carbon Steel	Type:	WN THREAD BL SW LJ
Size:	1/2"-80"	Thickness:	Sch5-Sch160, Xxs
Pressure:	Class150/300/600/9001500/2500	Technics:	Forged Casting
Connection:	Welding, Threaded	Surface Treatment:	Polishing
Standard Or Nonstandard:	Nonstandard

Specification

item	value
Place of Origin	China
	Jiangsu
Brand Name	NXF
Model Number	figure 8 blind flange
Standard	ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
Product name	Figure 8 Spectacle Spade Blind Pipe Flange
Material	Alloy Steel, Aluminum, Stainless Steel, Carbon Steel
Type	WN THREAD BL SW LJ
Size	1/2"-80"
Thickness	Sch5-Sch160, Xxs
Pressure	Class150/300/600/9001500/2500
Technics	Forged Casting
Connection	Welding, Threaded
Surface treatment	Polishing
Standard or Nonstandard	Nonstandard

Product Description

Type	weld neck flange, slip on flange, blind flange, tube sheet, threaded flange, socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange.
OD	15mm-6000mm. 1/2"to 80".DN10-DN3600
Pressure	150#-3000#,PN0.6-PN400,5K-40K,API 2000-15000
Standard	ANSI B16.5,ANSI B16.47 A/B, EN1092-1, SABA1123, JIS B2220, ALL DIN, ALL GOST, ALL UNI, AS2129, API 6A , BS4504, etc
Wall thickness	SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60, SCH80, SCH160, XXS and etc.
Stainless steel	A182F304/304L, A182F316/316L, 316H, 321H,304H, 310H, A182F321, A182F310S, A182F347H, 347L, 317L, A182F316Ti, A182 F317, 904L, 1.4301, 1.4307, 1.4401, 1.4571, 1.4541 etc.
Carbon steel	A105, A350 LF1,A350LF2,A350LF3, Q345, E24, A42CP,A48CP, A515 GR55, A515GR60, A515GR70, A516 GR60, A516 GR70, ST37.2,ST45.8, Q235, STEEL20, P235GH,P245GH, P250GH, P265GH, P280GH, P295GP etc.
Duplex steel	UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 , UNS32760, 1.4462, 1.4410, 1.4501, A182F51, A182F53 and etc.
Pipeline steel	A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc
Nickel alloy	inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H ,C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy	A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.
Application	Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform
Attention	ready stock,faster delivery time;available in all sizes,customized;high quality

Packing & Delivery

Packaging Details:Plastic film inside , wooden pallets outside , choose the suitable packing,Also it can be customized by the clients' demand.

Delivery detail:According to the quantities and specifications of each order.Normal delivery time is from 15 to 35 days after receiving the deposit.

Company Profile

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship."

1. Are you trading company or manufacturer ?
We are manufacturer.

2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-35 days if the goods are not in stock, it is according to
quantity.

3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
