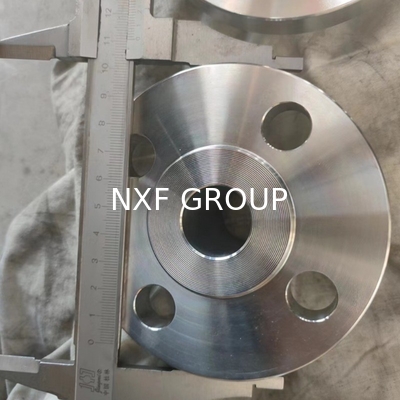

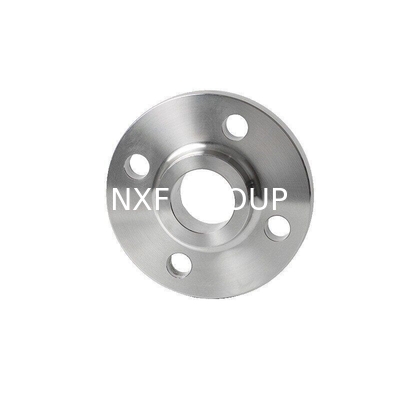

BS 3293 Monel K500 Slip On Flange ANSI B16.5 Standard Forged Nickel Based Alloy JIS ASME DIN ISO Flange OD 1/2-24 INCH

Large Image : BS 3293 Monel K500 Slip On Flange ANSI B16.5 Standard Forged Nickel Based Alloy JIS ASME DIN ISO Flange OD 1/2-24 INCH

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	Flange

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.00/pieces 10-99 pieces

Contact Now

Detailed Product Description

Standard:	ANSI, DIN, ISO, JIS, ASME	Product Name:	Monel K500 Slip On Flange
Material Of Flange:	UNS N05500	Standard Of Flange:	ASTM A105, ASTM A182, ASME B16.5, BS 3293, DIN 86029.
OD:	1/2-24 INCH	Pressure:	150-2500LB
Manufacturing Process:	Forged	Type:	Slip On Flange
Brand:	NXF	Packing:	Wooden Case
MOQ:	1pc

Product Description

MONEL K-500 alloy has the same corrosion resistance as 400, but has higher mechanical strength and hardness. It has good heat corrosion resistance and long-term structural stability. It is mainly used to manufacture turbine blades and gas turbine blades with working temperatures below 750℃ on aircraft engines; used to manufacture fasteners and springs on ships; pumps and valve parts on chemical equipment; scraper blades on papermaking equipment, etc.

Slip on flange also named as SO flange. SO flanges slip over pipes and are designed to bit slightly bigger on the inside than the pipe. They connect to the pipe through a fillet weld at the flange top and bottom. It is used to insert the pipe into the inner hole of flange, as the flange inner diameter is little bigger than the pipe’s outer diameter, pipe and flange could be connected by lap welding at the top and bottom of the flange.

Specification

item	value
Standard	ANSI, DIN, ISO, JIS, ASME
Place of Origin	China
	Jiangsu
Brand Name	NXF
Model Number	Flange
Product name	Monel K500 Slip On Flange
Material	UNS N05500
Standard	ASTM A105, ASTM A182, ASME B16.5, BS 3293, DIN 86029.
OD	1/2-24 INCH
Pressure	150-2500LB
Manufacturing Process	Forged
Type	Slip On Flange
Brand	NXF
Packing	Wooden Case
MOQ	1pc

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Production Equipment

Customer Visit

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
