NXF 13-8Mo 1.4534 S13800 Pipe Lines Connect Spectacle Blind Flange DN15-1200 Class150-2500lb ASTM A564/A564M AMS 5629

Large Image : NXF 13-8Mo 1.4534 S13800 Pipe Lines Connect Spectacle Blind Flange DN15-1200 Class150-2500lb ASTM A564/A564M AMS 5629

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	DN15-1200

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$2.00/pieces 10-99 pieces

Contact Now

Detailed Product Description

Standard:	ASTM, AMS	Product Name:	8-Spectacle Blind Flange
Material:	13-8Mo 1.4534 S13800	OD:	DN15-1200
Pressure:	Class150-2500lb	Application:	Pipe Lines Connect
Type:	8-Spectacle Blind	Standard Or Nonstandard:	ASTM A564/A564M AMS 5629
MOQ:	1 Piece	Packing:	Wooden Box
Brand:	NXF

Product Description

PH 13-8 Mo is a stainless steel with approximately 13% chromium and 8% nickel content that has good resistance to corrosion in general as well as to stress corrosion cracking. PH 13-8 Mo offers better mechanical properties in demanding environmental conditions in comparison to other materials based on iron. Precise control of the microstructure is achieved through vacuum melting and remelting. Medium to high strength can be achieved through precipitation hardening aging treatments.

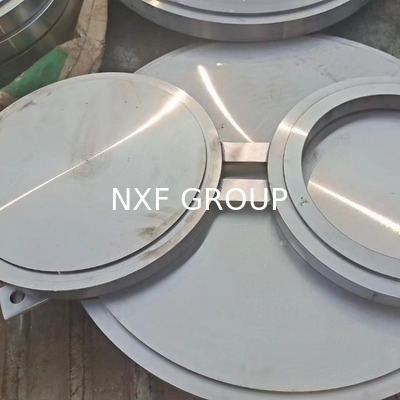

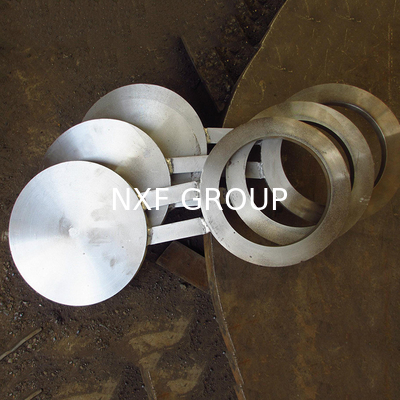

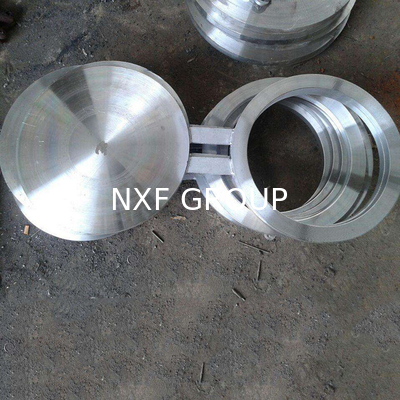

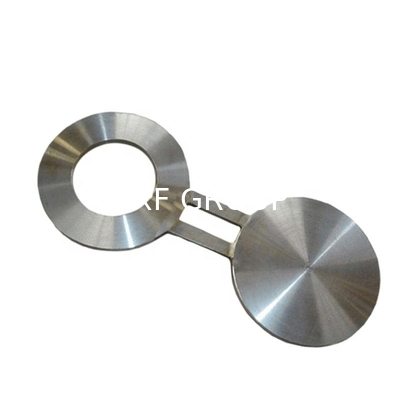

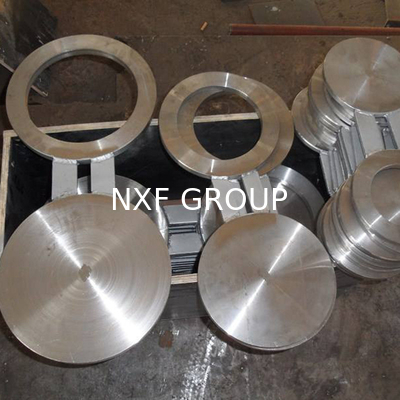

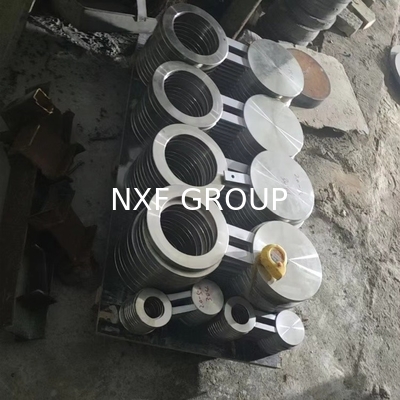

8-Spectacle Blind Flange, as the name suggests, is shaped like a figure 8, one end of which is a blind plate, the other end is a combination of throttling rings, when conveying fluid, the throttle ring is used, and the blind plate is used when cutting off, a bit like the role of a cut-off valve, which can be used to cut off when the valve leaks. Its sealing performance is better. For systems that require complete isolation, it is generally chosen as a reliable means of isolation. There should be two stop valves before and after the figure 8 blind plate, and when all are closed, replace the state of the figure 8 blind plate. Common heat exchanger operation and backup, reactor operation and backup, nitrogen pipeline and process pipeline connection and so on. Another feature is that it is clearly marked and easy to identify its installation status. The main role played by the eight-figure blind plate is complete partition, just like the role of a gate valve with 100% reliable performance and will not be operated by mistake.

Specification

item	value
Product name	8-Spectacle Blind Flange
Material	13-8Mo 1.4534 S13800
OD	DN15-1200
Pressure	Class150-2500lb
Application	Pipe Lines Connect
Type	8 Spectacle Blind
Standard or Nonstandard	ASTM A564/A564M AMS 5629
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Applications

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
