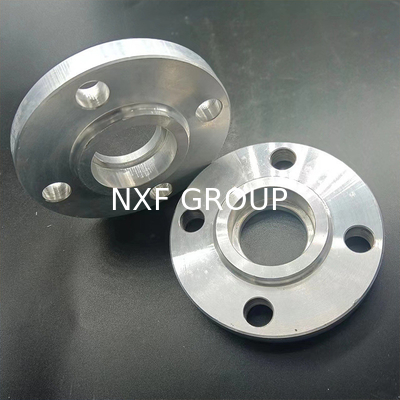

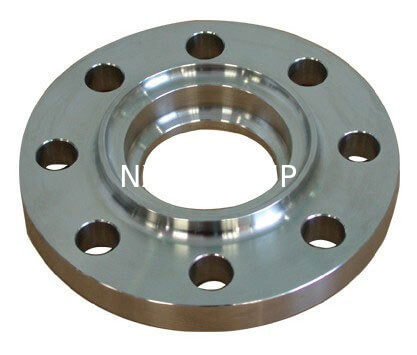

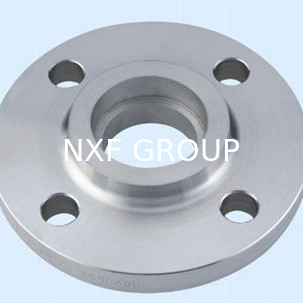

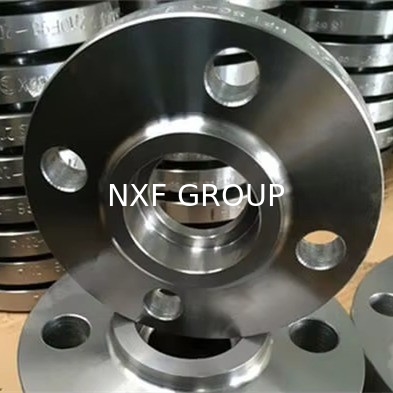

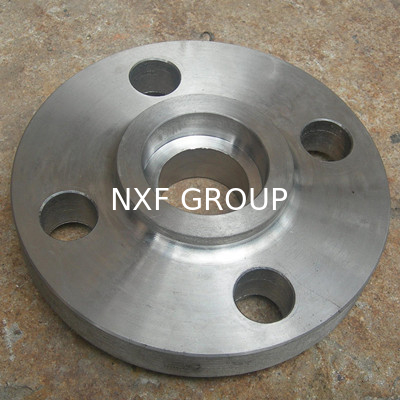

End Alloy B-2 / UNS N10665 / W.Nr. 2.4617 Socket Welding Flange for Pipe Lines Connect DN 15-600 Equal Class 150-1500

Large Image : End Alloy B-2 / UNS N10665 / W.Nr. 2.4617 Socket Welding Flange for Pipe Lines Connect DN 15-600 Equal Class 150-1500

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Forged	Connection:	Welding
Shape:	Equal	Head Code:	Square
Product Name:	Socket Welding Flange	Material:	Alloy B-2 / UNS N10665 / W.Nr. 2.4617
OD:	DN 15-600	Pressure:	Class 150-1500
Usage:	Oil Gas Water Industrial	Brand:	NXF
MOQ:	1 Piece	Packing:	Wooden Box
Application:	Pipe Lines Connect

Product Description

HASTELLOY B-2 nickel-molybdenum alloy has excellent corrosion resistance in reducing environments HASTELLOY B-3 is an upgraded version of B-2, and has excellent corrosion resistance to hydrochloric acid at any temperature and concentration.Hastelloy is a nickel-based corrosion-resistant alloy, mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. Hastelloy has good corrosion resistance and thermal stability, and is mostly used in aviation, chemical fields, etc.

Socket welding flange refers to the flange that the pipe end is inserted into the flange ring step and welded at the pipe end and the outside. There are two types: with neck and without neck. The neck pipe flange has good rigidity, small welding deformation, good sealing, and can be used in occasions with a pressure of 1.0~10.0MPa. The type B flange for containers is also a socket welding flange, which is used in occasions with high sealing requirements. When designing, the socket welding flange can be checked as an integral flange.

Specification

Technics	Forged
Head Code	Square
Customized support	OEM
Connection	Welding
Product name	Socket Welding Flange
Material	Alloy B-2 / UNS N10665 / W.Nr. 2.4617
OD	DN 15-600
Pressure	Class 150-2500
Usage	Oil Gas Water Industrial
Brand	NXF
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

Company Profile

Other Products

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
