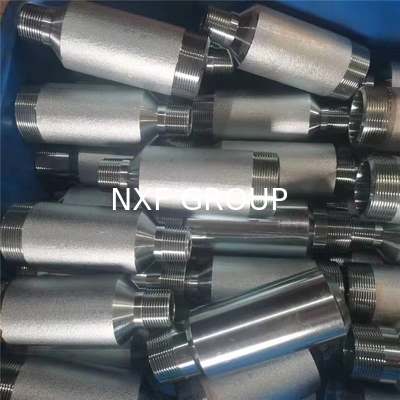

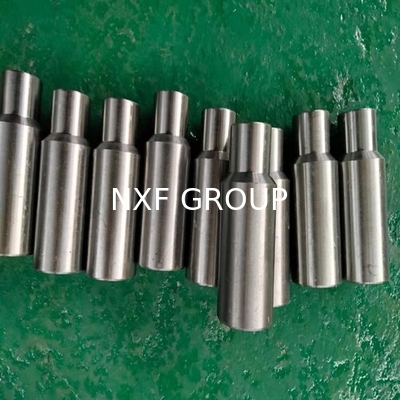

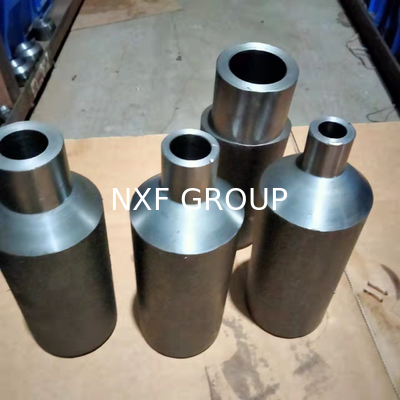

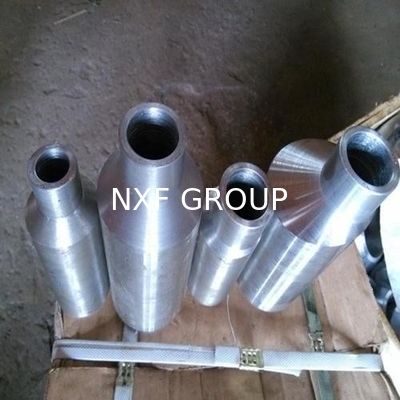

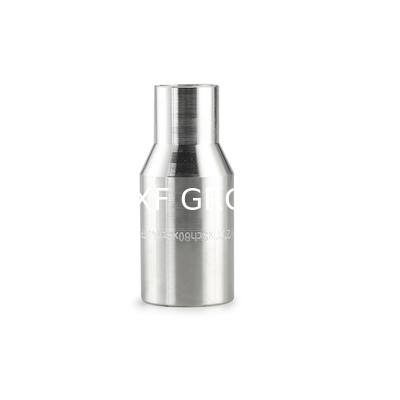

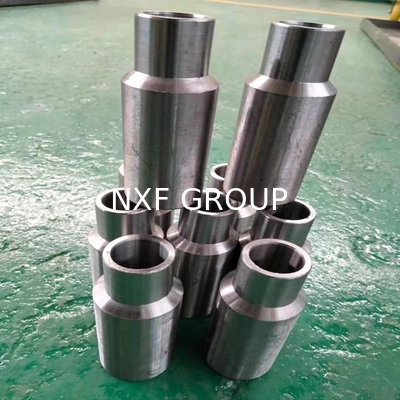

Reducing Monel K500 Swage Nipple 1/4-12 INCH SCH10-SCH80 Ni Alloy with BSP Thread Oil Application Weld Connection Nipple

Large Image : Reducing Monel K500 Swage Nipple 1/4-12 INCH SCH10-SCH80 Ni Alloy with BSP Thread Oil Application Weld Connection Nipple

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF
Model Number:	1/4-12 INCH

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$0.50/pieces 10-99 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Forged	Connection:	Welding
Shape:	Reducing	Head Code:	Round
Product Name:	Monel K500 Swage Nipple	Material:	UNS N05500
Standard:	UNS	OD:	1/4-12 INCH
Thickness:	SCH10-SCH80	Lenght:	Customizable
Type:	Welding/Male	Brand:	NXF
Packing:	Wooden Case	MOQ:	1pc

Product Description

MONEL K-500 alloy has the same corrosion resistance as 400, but has higher mechanical strength and hardness. It has good heat corrosion resistance and long-term structural stability. It is mainly used to manufacture turbine blades and gas turbine blades with working temperatures below 750℃ on aircraft engines; used to manufacture fasteners and springs on ships; pumps and valve parts on chemical equipment; scraper blades on papermaking equipment, etc.

Swaged nipple is a piece of pipe used to connect two pipes of different sizes in a straight line to reduce the diameter of the pipe. It has concentric reducing joints and eccentric reducing joints. The center line of two pipes connected by concentric reducing joint is in a straight line, which is mainly used for vertical pipelines; Eccentric reducing joints are mostly used in horizontal pipelines. Reducing joint with straight edge section, GB12459(DN20x15 ~ 500~300) made of seamless steel pipe; Without straight side section reducer, GB/ TI.MOI (DN350×300 ~ 1200×1000) is made of steel plate or steel strip. Generally, the reducing joint for large-diameter pipe connection is made of steel plate or steel strip, which is cheap and economical, but without straight edge section, and the alignment of the welding groove is more difficult than that of the reducing joint with straight edge section. In small diameter pipelines (DN50 or less), reducing joints are often used instead of reducing joints for pipeline reducing. Reducing segments are also concentric and eccentric.

Specification

item	value
Technics	Forged
Shape	Reducing
Head Code	Round
Place of Origin	China
	Jiangsu
Warranty	3 years
Customized support	OEM
Brand Name	NXF
Product name	Monel K500 Swage Nipple
Material	UNS N05500
Standard	UNS
OD	1/4-12 INCH
Thickness	SCH10-SCH80
Length	Customizable
Brand	NXF
Packing	Wooden Case
MOQ	1pc

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

Production Equipment

Customer Visit

New XiFei (SuZhou) Business Co.,Ltd is one of the leading and most respected manufacturers in China. Our products include metals, machinery, containers, construction materials, mechanical products, electrical systems, and medical accessories. Established in 1980, XIFEI has been working diligently ever since to embrace the needs of our global customer base.We work to ensure absolute customer satisfaction. Our team has dedicated itself to perfecting our three core components, "Service, Management and Craftsmanship." Our advantage:3S Service(Small Quantity/Short Time/Special Material)

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
