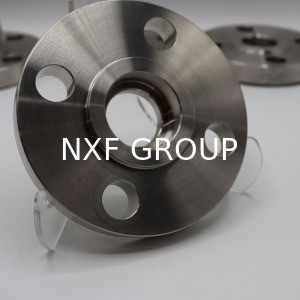

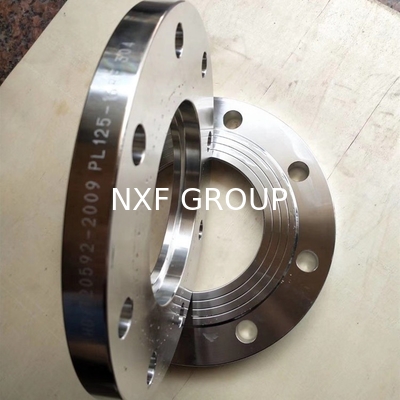

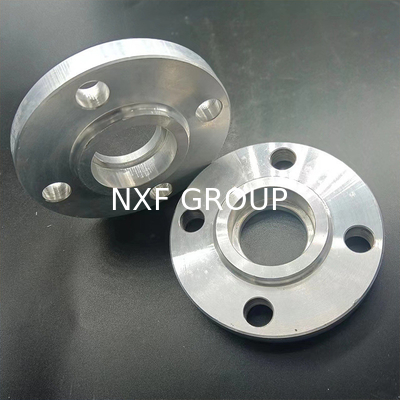

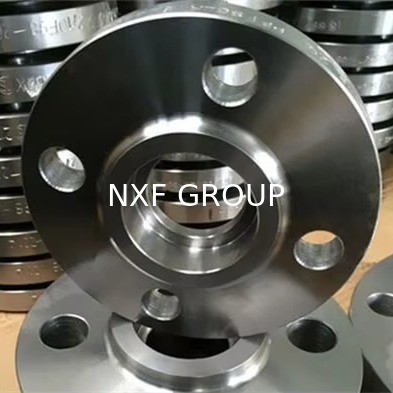

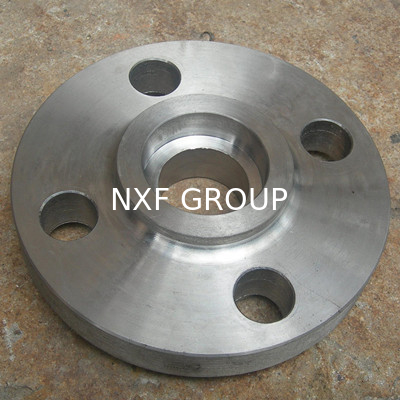

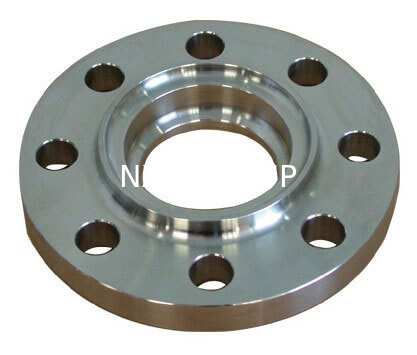

End Pipe Fittings ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 DN 15-1200 Socket Welding Flange for Pressure Pipe Lines Connect

Large Image : End Pipe Fittings ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 DN 15-1200 Socket Welding Flange for Pressure Pipe Lines Connect

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Standard:	ANSI, DIN, GB, ISO, JIS, Jpi, ASME	Product Name:	Socket Welding Flange
Material:	Alloy B-2 / UNS N10665 / W.Nr. 2.4617	OD:	DN 15-1200
Pressure:	Class 150-1500	Usage:	Oil Gas Water Industrial
Brand:	NXF	MOQ:	1 Piece
Packing:	Wooden Box	Application:	Pipe Lines Connect
Delivery Time:	10-15 Works

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

Socket welding flange refers to the flange that the pipe end is inserted into the flange ring step and welded at the pipe end and the outside. There are two types: with neck and without neck. The neck pipe flange has good rigidity, small welding deformation, good sealing, and can be used in occasions with a pressure of 1.0~10.0MPa. The type B flange for containers is also a socket welding flange, which is used in occasions with high sealing requirements. When designing, the socket welding flange can be checked as an integral flange.

Specification

Technics	Forged
Head Code	Round
Customized support	OEM
Connection	Welding
Product name	Socket Welding Flange
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD	DN 15-1200
Pressure	Class 150-2500
Usage	Oil Gas Water Industrial
Brand	NXF
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

Company Profile

Other Products

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
