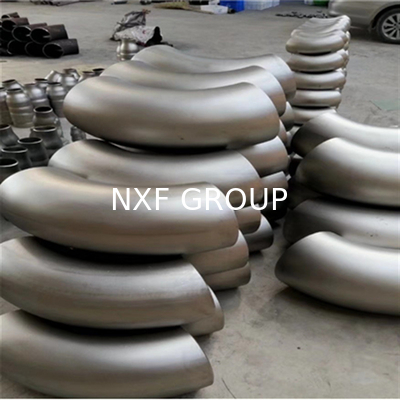

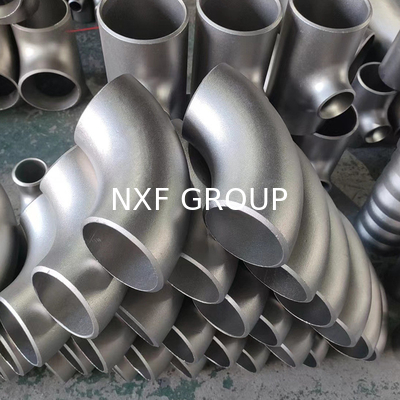

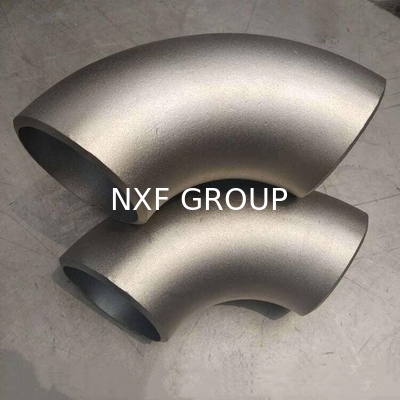

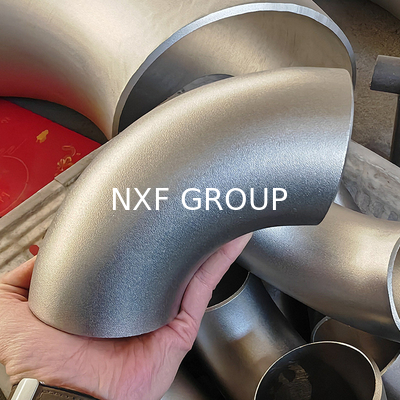

OD DN 15-1200 SCH10-XXS Sizes ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Butt Welding Elbow 90° 45° S/R Directly Sell

Large Image : OD DN 15-1200 SCH10-XXS Sizes ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Butt Welding Elbow 90° 45° S/R Directly Sell

Product Details:

Place of Origin:	jiangsu
Brand Name:	NXF
Model Number:	DN

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$7.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Casting	Connection:	Welding
Shape:	Reducing	Head Code:	Round
Product Name:	Butt Welding Elbow	Material:	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
Nominal Wall Thickness:	SCH 10-XXS	MOQ:	1 Piece
Package:	Wooden Carton	OD:	DN 15-1200
Type:	BW	Standard:	ANSI JIS DIN ASME
Sample:	Provide Samples	Name:	NXF

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

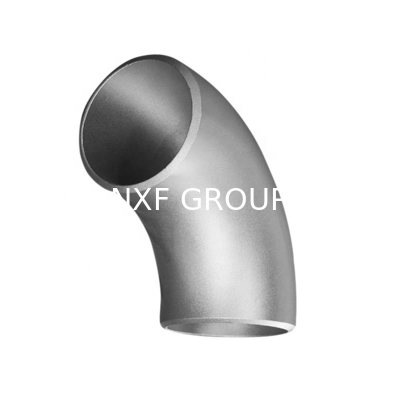

Butt-weld elbow is a steel hot-pressed or forged elbow, and its connection form is to directly weld the elbow to the steel pipe. Butt-weld elbows can be divided into long radius butt-weld elbows and short radius butt-weld elbows according to their curvature radius. The curvature radius of the long radius butt-weld elbow is equal to 1.5 times the outer diameter of the pipe, that is, R=1.5D. The curvature radius of the short radius butt-weld elbow is equal to the outer diameter of the pipe, that is, R=1D. In the formula, D is the diameter of the butt-weld elbow, and R is the curvature radius. If there is no special instruction, a 1.5D elbow is generally selected.

Specification

Technics	Forged
Warranty	3 years
Customized support	OEM
Brand Name	NXF
Model Number	DN
Connection	Welding
Product name	Butt Welding Elbow
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
MOQ	1 Piece
Package	Wooden Carton
OD	DN 15-1200
Type	BW
Standard	ANSI JIS DIN ASME

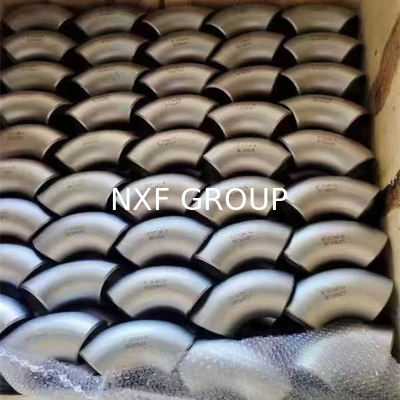

Packing & Delivery

Company Profile

Applications

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
