DN 6-100 Class 3000-9000 Forged Cast JIS 1pc ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Socket Welding Coupling for Water

Large Image : DN 6-100 Class 3000-9000 Forged Cast JIS 1pc ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Socket Welding Coupling for Water

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$4.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Casting	Connection:	Welding
Shape:	Equal	Head Code:	Square
Product Name:	Socketing Welding Coupling	Material:	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD:	DN 6-DN100	Pressure:	Class 3000-Class 9000
MOQ:	1 Piece	Brand:	NXF
Usage:	Oil Gas Water Industrial	Connection Method:	Weldng
Package:	Wooden Carton	Sample:	Provide Samples

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

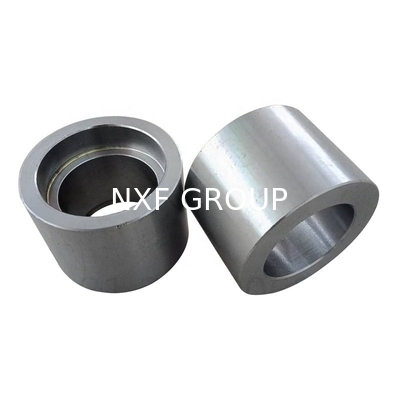

The socket couping is a pipe connector machined after forging round steel or steel ingot. Its connection form is socket welding (Socket Welding-SW). The steel pipe is inserted into the socket hole for welding. Therefore, it is called "socket pipe clamp". The main manufacturing standards are ANSI/ASME B16.11 and GB/T 14383-2008. The varieties of socket pipe clamps include double socket pipe clamps and single socket pipe clamps. Among them, the double socket pipe clamps are divided into equal diameter and different diameter, and the different diameter double socket pipe clamps are also divided into concentric and eccentric. Socket pipe clamps can be widely used in pipes of different diameters, including single-way, three-way, four-way, etc., and can also be used for water meters and valves. Due to the use of the socket structure, the pipe joint reduces the cost, is extremely convenient to install, use and maintain, and has a very high leak-proof ability, and has great market prospects.

Specification

Shape	Equal
Warranty	3 years
Customized support	OEM
Brand Name	NXF
Connection	Welding
Product name	Socketing Welding Coupling
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD	DN 6-DN100
Pressure	Class 3000-Class 9000
MOQ	1 Piece
Package	Wooden Carton
Sample	Provide Samples

Packing & Delivery

Company Profile

Other Products

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
