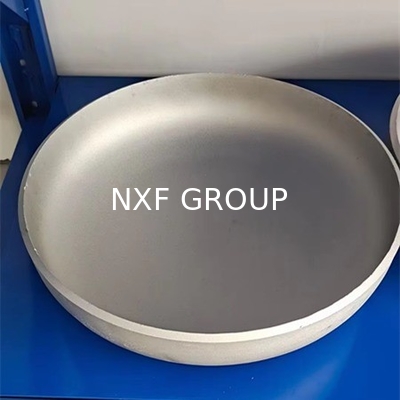

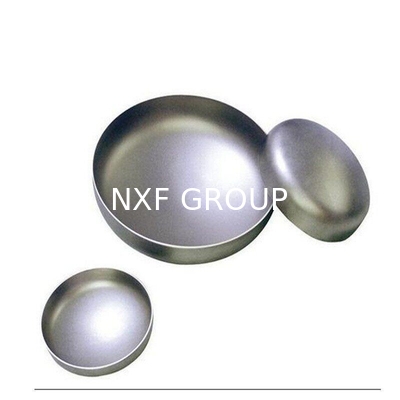

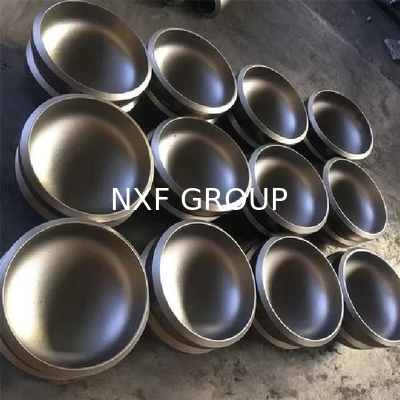

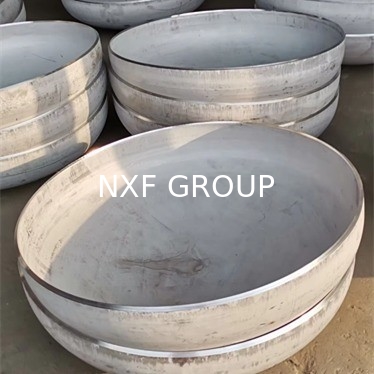

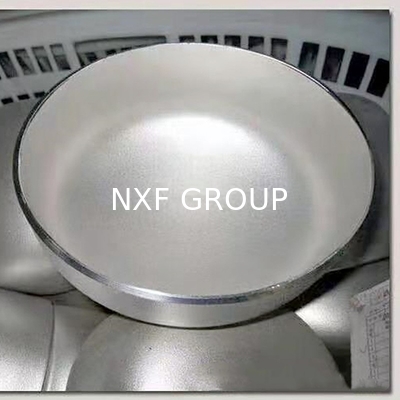

Square Head Code Reducing Butt Welding Cap DN 15-1200 MOQ 1 Piece ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052

Large Image : Square Head Code Reducing Butt Welding Cap DN 15-1200 MOQ 1 Piece ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Casting	Connection:	Welding
Shape:	Reducing	Head Code:	Square
Product Name:	Butt Welding Cap	Material:	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD:	DN 15-1200	Thickness:	SCH 10-SCH 160
Application:	Aerospace, Chemical Industry	Standard:	NXF
Packing:	Wooden Box Packing	MOQ:	1 Piece
Connection Method:	Welding Connecting	Sample:	Provide Samples

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

The butt welding cap is a component of the container and is connected to the cylinder by welding. (As shown below) According to different geometric shapes, it can be divided into spherical, elliptical, dish-shaped, spherical crown, cone shell and flat cover. Among them, spherical, elliptical, dish-shaped and spherical crown heads are collectively referred to as convex heads. In terms of welding, it is divided into butt welding heads and socket welding heads. It is used for various container equipment, such as storage tanks, heat exchangers, towers, reactors, boilers and separation equipment. The materials include carbon steel (A3, 20#, Q235, Q345B, 16Mn, etc.), stainless steel (304, 321, 304L, 316, 316L, etc.), alloy steel (15Mo3 15CrMoV 35CrMoV45CrMo), aluminum, titanium, copper, nickel and nickel alloys, etc.

Specification

Customized support	OEM
Connection	Welding
Product name	Butt Welding Cap
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD	DN 15-1200
Thickness	SCH 10-SCH 80
Application	Aerospace, Chemical Industry
Packing	Wooden Box Packing
MOQ	1 Piece
Connection method	Welding Connecting
Sample	Provide Samples

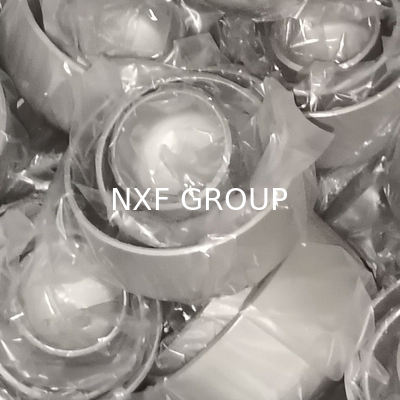

Packing & Delivery

Company Profile

Other Products

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
