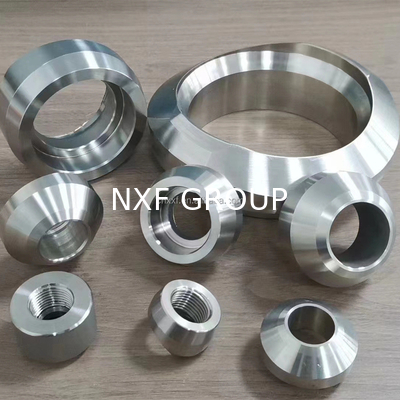

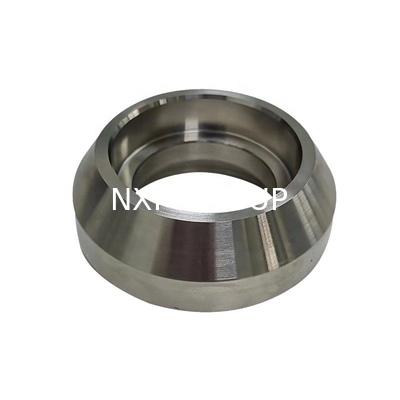

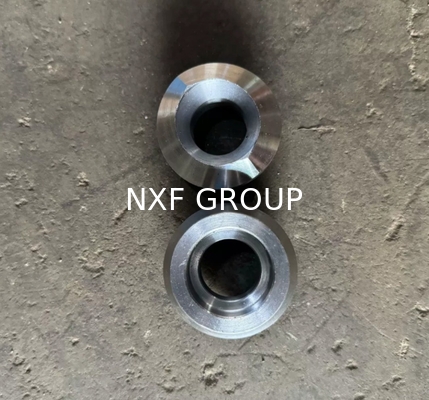

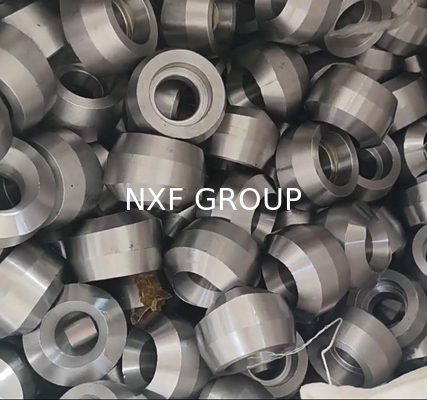

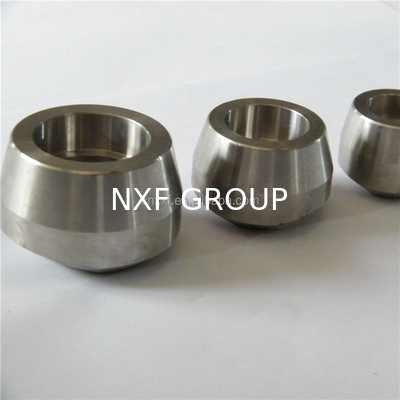

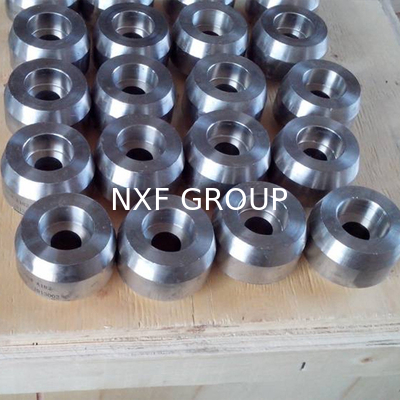

JIS Standard DN 6-100 Class 3000-6000 Socket Welding Olet for Oil and Gas ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455

Large Image : JIS Standard DN 6-100 Class 3000-6000 Socket Welding Olet for Oil and Gas ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455

Product Details:

Place of Origin:	Jiangsu, China
Brand Name:	NXF

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$4.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Forged	Connection:	Welding
Shape:	Equal	Head Code:	Square
Product Name:	Socket Welding Olet	Material:	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD:	DN 6-100	Pressure:	Class 3000-Class 6000
Packing:	Wooden Box	MOQ:	1 Piece
Connection Method:	Weldng	Sample:	Provide Samples
Brand:	NXF	Usage:	Oil Gas Water Industrial

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

The Socket Welding Olet is also called branch pipe seat, saddle, and saddle-type pipe joint. It is mainly used as a reinforced pipe fitting for branch pipe connection, replacing the branch pipe connection types such as reducing tees, reinforcement plates, and reinforced pipe sections. It has outstanding advantages such as safety and reliability, reduced cost, simple construction, improved medium flow channel, series standardization, and convenient design and selection. It is increasingly widely used in high-pressure, high-temperature, large-diameter, and thick-walled pipelines, replacing traditional branch pipe connection methods.

Specification

Technics	Forged
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
Shape	Equal
Customized support	OEM
Connection	Welding
Product name	Socket Welding Olet
OD	DN 6-100
Pressure	Class 3000-Class 6000
Packing	Wooden Box
MOQ	1 Piece
Connection method	Weldng
Sample	Provide Samples
Usage	Oil Gas Water Industrial
