Polished DN 15-1500 Standard 1pc MOQ ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Butt Welding Straight Tee

Large Image : Polished DN 15-1500 Standard 1pc MOQ ASTM B574 B619 ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052 Butt Welding Straight Tee

Product Details:

Place of Origin:	jiangsu,China
Brand Name:	NXF
Model Number:	DN 15-1500

Payment & Shipping Terms:

Minimum Order Quantity:	10 pieces
Price:	$5.00/pieces 10-49 pieces

Contact Now

Detailed Product Description

Warranty:	3 Years	Customized Support:	OEM
Technics:	Casting	Connection:	Welding
Shape:	Equal	Head Code:	Square
Product Name:	Butt Welding Elbow Straight Tee	Material:	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD:	DN 15-1500	Thickness:	SHC 10-SCH 160
MOQ:	1 Piece	Standard:	NXF
Packing:	Wooden Box	Connection Method:	BW
Country Of Origin:	China	Sample:	Provide Sample

Product Description

HASTELLOY C-4 alloy (UNS N06455) is the most (microstructurally) stable of the widely used nickel-chromium-molybdenum materials,which are well known for their resistance to many aggressive chemicals, in particular hydrochloric acid, sulfuric acid, and chlorides. This stability means that the alloy can be welded without fear of sensitization, i.e. the nucleation and growth of deleterious, second phase precipitates in the grain boundaries of the weld heat-affected zone (HAZ).Like other nickel alloys, it is ductile, easy to form and weld, and possesses exceptional resistance to stress corrosion cracking in chloride-bearing solutions (a form of degradation to which the austenitic stainless steels are prone). With its high chromium and molybdenum contents, it is able to withstand both oxidizing and non-oxidizing acids, and is resistant to pitting and crevice attack in the presence of chlorides and other halides.

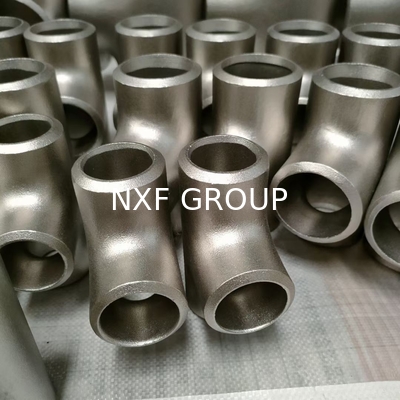

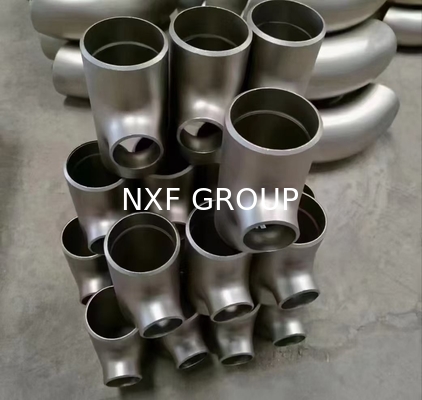

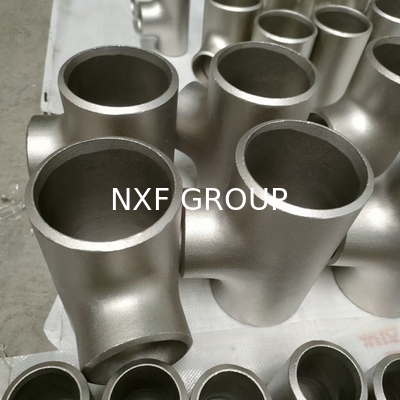

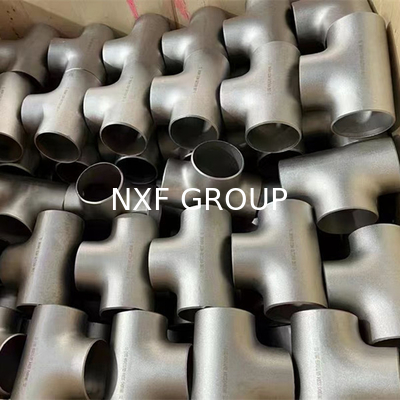

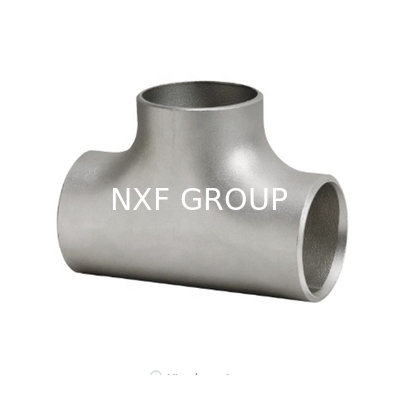

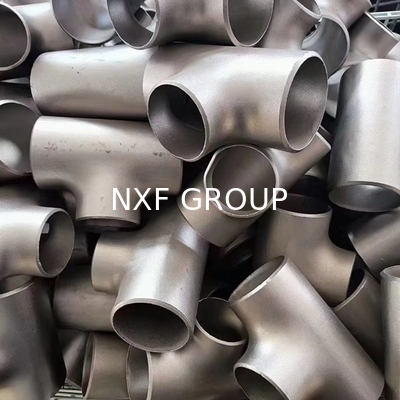

Butt welding straight tee is a pipe fitting, pipe connector, used at the branch pipe of the main pipeline. Equal diameter tee is a type of tee, and there are two types of tees: general equal diameter tee and reducing tee. It is named because the three ends can be connected to the pipe.Equal diameter tees are widely used in the construction and maintenance of projects in petrochemical, oil and gas, liquefied gas, fertilizer, power plant, nuclear power, shipbuilding, papermaking, pharmaceutical, food hygiene, urban construction and other industries. The pressure requirements for this kind of pipe fittings in industry are relatively high, and the maximum pressure can reach 600 kg. The water pipe pressure in life is relatively low, generally 16 kg.

Specification

Customized support	OEM
Model Number	DN 15-1500
Connection	Welding
Product name	Butt Welding Straight Tee
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD	DN 15-1500
Thickness	SHC 10-SCH 80
MOQ	1 Piece
Packing	Wooden Box
Connection method	BW
Sample	Provide sample

Packing & Delivery

Company Profile

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
