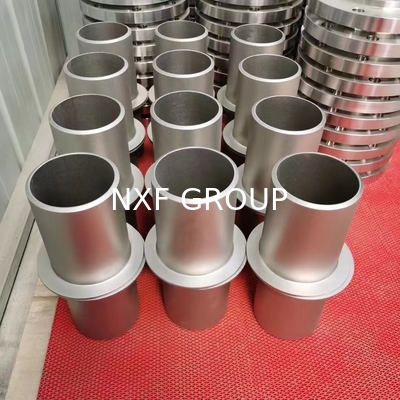

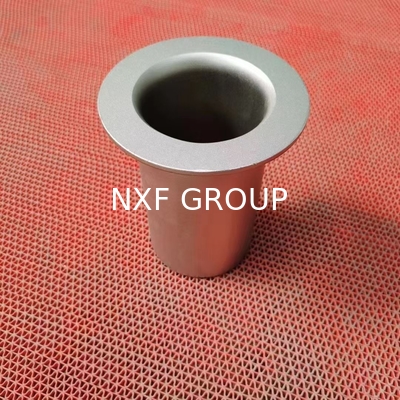

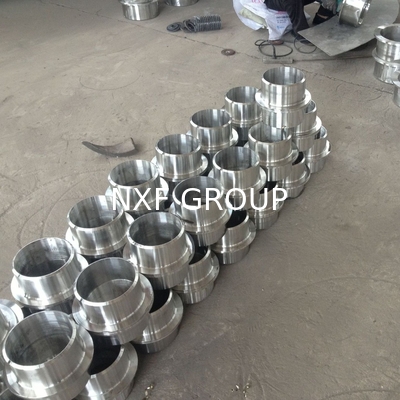

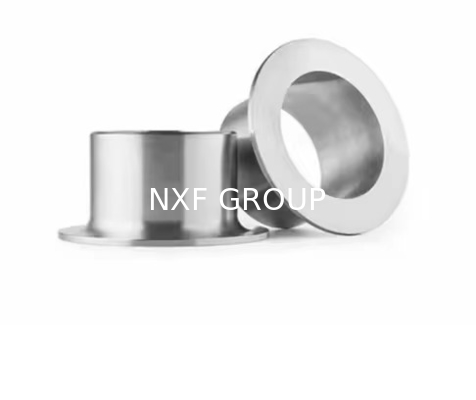

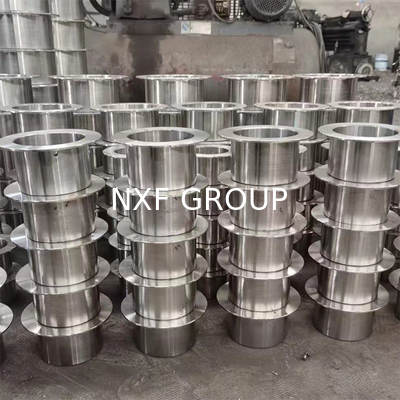

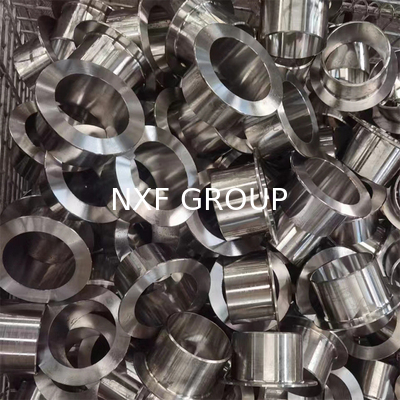

NXF ASTM B574 ASTM B619 Alloy C-4 /UNS N06455 Pipe Fittings DN15-1200 SCH10-XXS Lap Joint Stub End

Large Image : NXF ASTM B574 ASTM B619 Alloy C-4 /UNS N06455 Pipe Fittings DN15-1200 SCH10-XXS Lap Joint Stub End

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	agreement
Packaging Details:	Export packing
Delivery Time:	5-25 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Lap Joint Stub End	Material:	Alloy C-4 /UNS N06455/W.Nr.2.4610
OD:	DN15-1200	Thickness:	SCH10-XXS
Application:	Pipe Lines Connect	Surface:	Bright
Standard:	ASTM B574,ASTM B619	MOQ:	1 Piece
Packing:	Export Packing	Brand:	NXF

Product Description

Alloy C-4 is an austenitic nickel-molybdenum-chromium alloy with a low carbon, silicon, and iron content. This alloy has a significantly lower tendency to form precipitation in the temperature range between 650 and 1,040 °C(1,202 - 1,904 °F), improving its resistance to inter-crystalline corrosion. When machined perfectly, no knife line attack occurs in the heat-affected zones of awelding edge. Alloy C-4 is characterized by: Very good resistance in a broad field of corrosive media, in particular under strongly oxidizing conditions. Excellent resistance to pitting, crevice and stress corrosion. Lap Joint Stub End is a kind of steel butt welded pipe fitting. It is usually the part inside the loose flange. Loose sleeve flanges: loose sleeve flanges commonly known as looping flanges, partial welding ring looping flanges, flanges and butt welding looping flanges. It is often used when the medium temperature and pressure are not high and the medium is highly corrosive. When the medium is corrosive, the part of the flange in contact with the medium (flanged nipple) is a corrosion-resistant high-grade material such as stainless steel and other materials, and the external use of low-grade materials such as carbon steel material flange ring clamp it to achieve sealing.

Specification

item	value
Connection	Welding
Product name	Lap Joint Stub End
Material	Alloy C-4 /UNS N06455/W.Nr.2.4610
OD	DN15-1200
Application	Pipe Lines Connect
Standard	ASTM B574,ASTM B619
Head Code	Round
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Applications

Company Profile

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
