NXF ASTM B574,ASTM B619 Alloy C-4 /UNS N06455 DN15-1200 Class150-2500lb Pipe Flange 8-Spectacle Blind Flange

Large Image : NXF ASTM B574,ASTM B619 Alloy C-4 /UNS N06455 DN15-1200 Class150-2500lb Pipe Flange 8-Spectacle Blind Flange

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	agreement
Packaging Details:	Export packing
Delivery Time:	5-25 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	8-Spectacle Blind Flange	Material:	Alloy C-4 /UNS N06455/W.Nr.2.4610
OD:	DN15-1200	Pressure:	Class150-2500lb
Application:	Pipe Lines Connect	Surface:	Bright
Standard:	ASTM B574,ASTM B619	MOQ:	1 Piece
Packing:	Export Packing	Brand:	NXF

Product Description

Alloy C-4 is an austenitic nickel-molybdenum-chromium alloy with a low carbon, silicon, and iron content. This alloy has a significantly lower tendency to form precipitation in the temperature range between 650 and 1,040 °C(1,202 - 1,904 °F), improving its resistance to inter-crystalline corrosion. When machined perfectly, no knife line attack occurs in the heat-affected zones of awelding edge. Alloy C-4 is characterized by: Very good resistance in a broad field of corrosive media, in particular under strongly oxidizing conditions. Excellent resistance to pitting, crevice and stress corrosion.

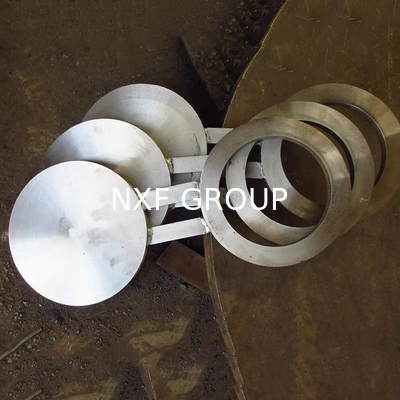

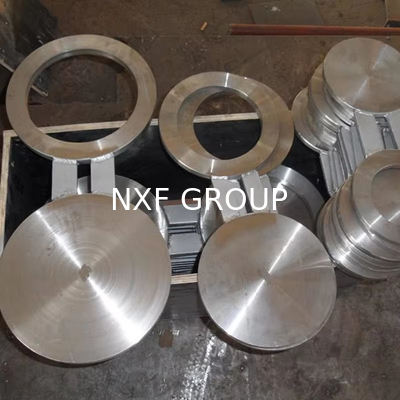

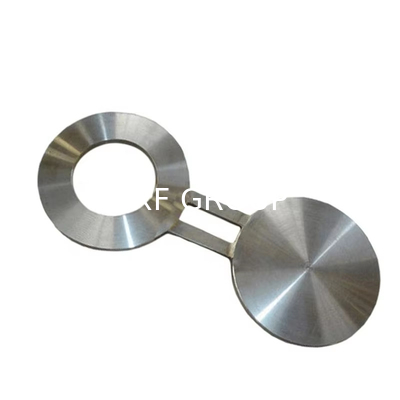

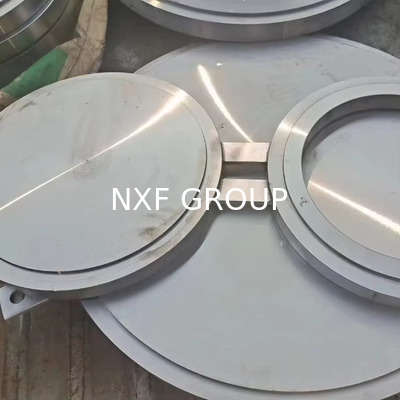

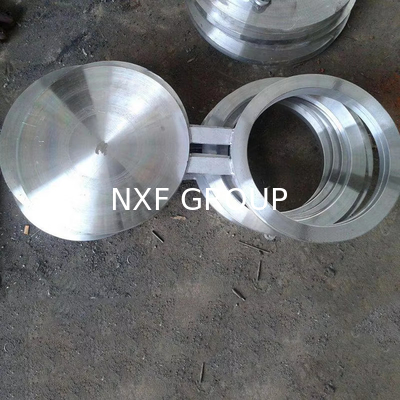

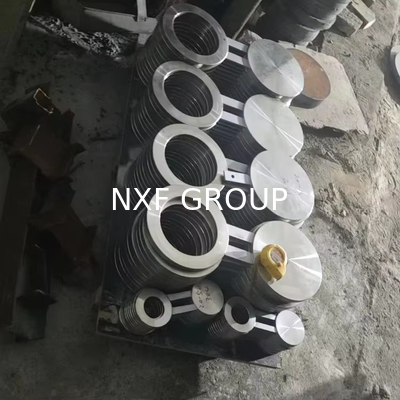

8-Spectacle Blind Flange, as the name suggests, is shaped like a figure 8, one end of which is a blind plate, the other end is a combination of throttling rings, when conveying fluid, the throttle ring is used, and the blind plate is used when cutting off, a bit like the role of a cut-off valve, which can be used to cut off when the valve leaks. Its sealing performance is better. For systems that require complete isolation, it is generally chosen as a reliable means of isolation. There should be two stop valves before and after the figure 8 blind plate, and when all are closed, replace the state of the figure 8 blind plate. Common heat exchanger operation and backup, reactor operation and backup, nitrogen pipeline and process pipeline connection and so on. Another feature is that it is clearly marked and easy to identify its installation status. The main role played by the eight-figure blind plate is complete partition, just like the role of a gate valve with 100% reliable performance and will not be operated by mistake.

Specification

item	value
Product name	8-Spectacle Blind Flange
Material	Alloy C-4 /UNS N06455/W.Nr.2.4610
OD	DN15-1200
Pressure	Class150-2500lb
Application	Pipe Lines Connect
Standard or Nonstandard	ASTM B574,ASTM B619
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

Product processing

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Applications

Company Profile

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously.We Specialize in manufacturing about 21 years.We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
