NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B637,AMS 5383 Alloy G-30/2.4603/UNS N06030 Blanks Figure 8 Blanks

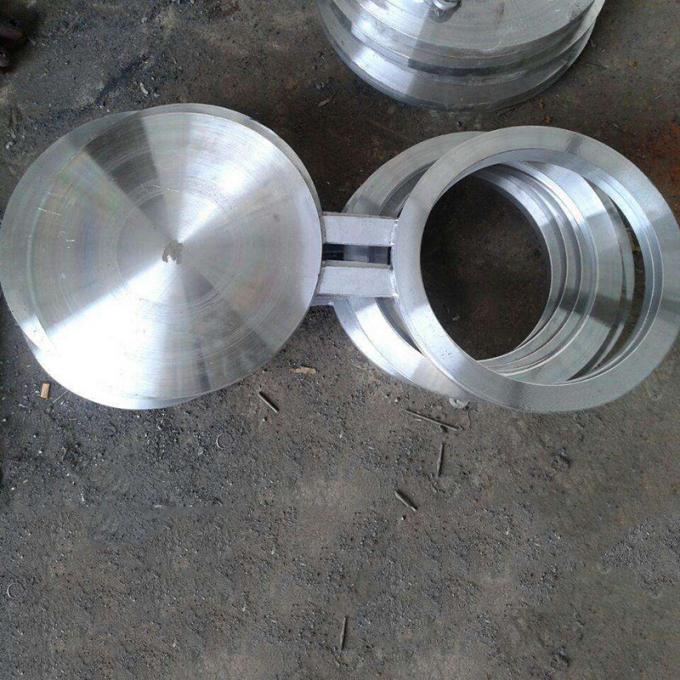

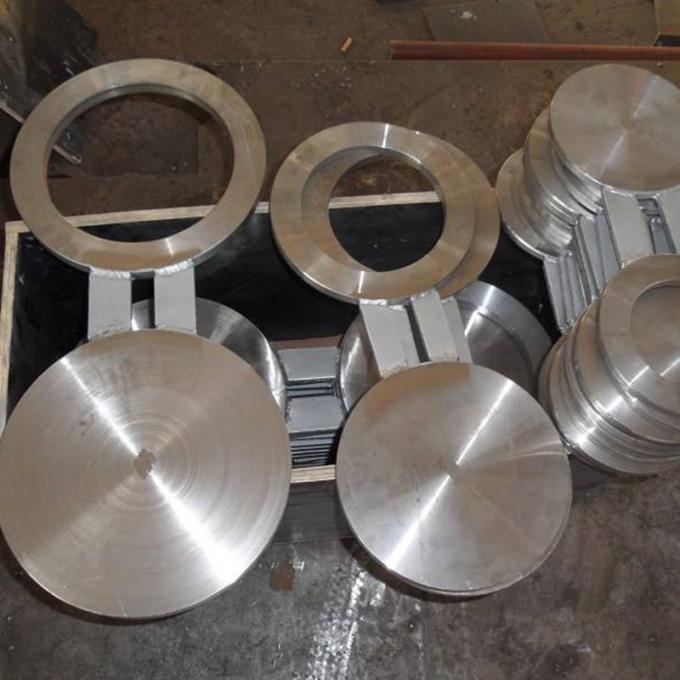

Large Image : NXF ANSI/JIS/ASME/DIN/ISO/GB DN 15-1200 Class 150-2500 ASTM B637,AMS 5383 Alloy G-30/2.4603/UNS N06030 Blanks Figure 8 Blanks

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 works
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Blanks Figure 8 Blanks	Material:	Alloy G-30/2.4603/UNS N06030
OD:	DN 15-1200	Pressure:	Class 150-2500
Application:	Industry	Usage:	Oil Gas Water Industrial
MOQ:	1 Piece	Brand:	NXF
Packing:	Wooden Box	Connection Method:	Welding

Product Description

Alloy G-30 (UNS N06030) is a Ni-Cr-Fe corrosion-resistant alloy with alloying additions of molibdenum, tungsten, copper and niobium. Generally resistant to oxidizing environments, it's extremely resistant to phosphoric acid (P2O5) and thus used widely in the production of agrichemical fertilizers. It can be seen as a low-carbon variant of alloy G, with improved weldability (it's less prone to heat-affected zome carbide precipitation and hot-cracking), and ductility.Used in phosphoric acid plants, sulphuric acid service, nitric acid service, pickling operations, petrochemical operations, fertilizer manufacture, pesticide manufacture, gold extraction and nuclear waste processing.

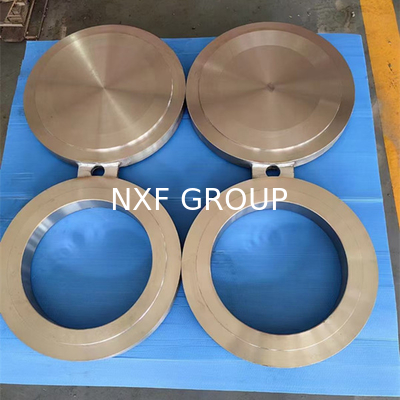

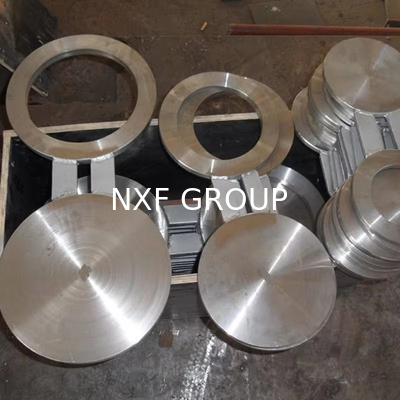

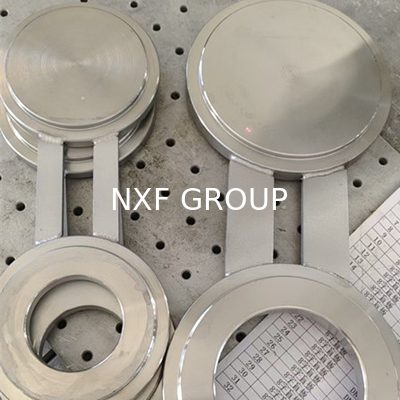

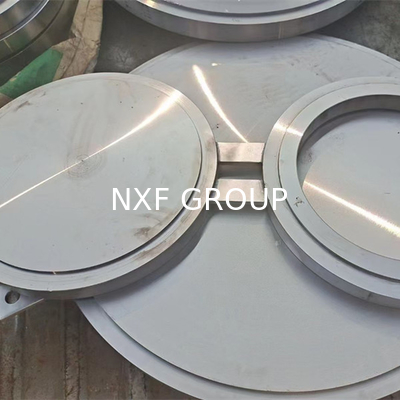

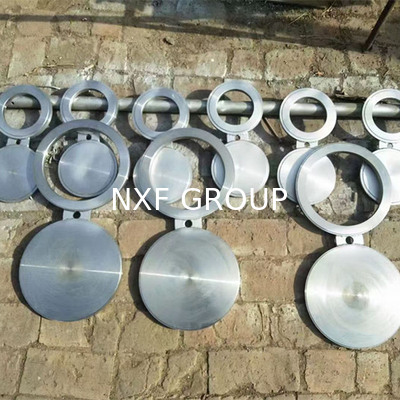

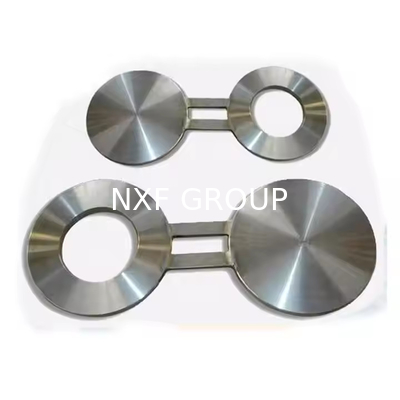

Blanks Figure 8 Blanks Flange is a pipe fitting, which is mainly used for easy maintenance. You can know its specific shape by painting the upper part of the "8" black. It is half a blind plate and half an iron ring. It is often used in pipeline flanges that need to change the process. The main materials are carbon steel, stainless steel, and alloys. It can be selected according to the pipeline pressure level and pipeline medium. It is usually used on pipelines with larger diameters. Usually, one end of the flange is used to occupy the spacing to keep the pipeline unobstructed. When necessary, it is replaced with a blind plate of the same thickness at the other end to cut off the pipeline. Avoid forced expansion of the pipeline due to temporary replacement of other blind plates, affecting the entire system.

Product processing

Specification

Shape	Equal
Head Code	Round
Customized support	OEM
Brand Name	NXF
Connection	Welding
Product name	Blanks Figure 8 Blanks
Material	ALLOY C-4/W.NR 2.4610/UNS N06455/AWS 052
OD	DN 15-1200
Pressure	Class 150-2500
Application	Industry
Usage	Oil Gas Water Industrial
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

Company Profile

Application Areas

Certifications

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
