NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet

Large Image : NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece
Price:	agreement
Packaging Details:	Export packing
Delivery Time:	5-25 work days
Payment Terms:	T/T, L/C, Western Union, MoneyGram, D/A
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Butt Welded Olet	Material:	Alloy X/2.4665/N06002
OD:	DN15-1200	Thickness:	SCH STD-XXS
Application:	Pipe Lines Connect	Surface:	Bright
Standard:	ASTM B435 B572 5754 5798	MOQ:	1 Piece
Packing:	Export Packing	Brand:	NXF

Product Description

Alloy X has excellent resistance to reducing and carburizing atmospheres, making it suitable for furnace components. Due to its high molybdenum content, Alloy X may be subject to catastrophic oxidation at 1204°C. The alloy has good high temperature strength coupled with oxidation resistance up to 1093°C. This Alloy is readily weldable using matching filler wires. After severe forming, fabrications may be annealed at 1177°C, 15 minutes per 1/8″ of thickness, rapid air cool.

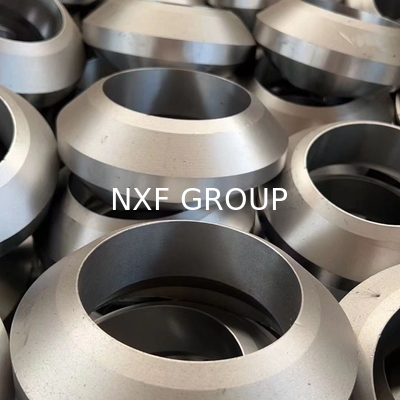

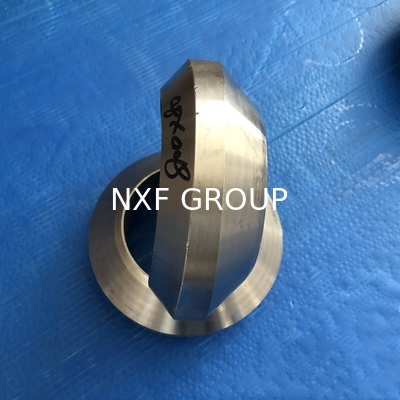

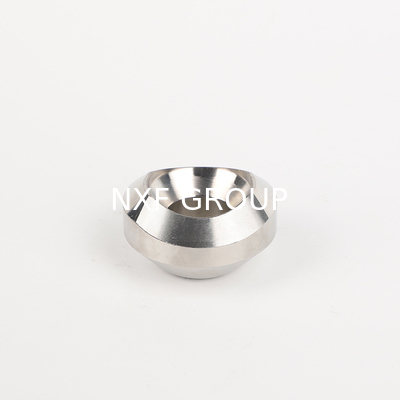

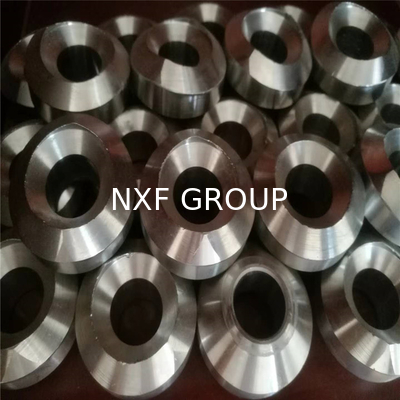

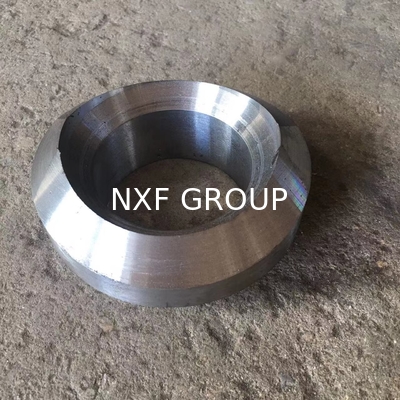

The olet is a reinforced pipe fitting used for branch pipe connection, which replaces the traditional reducing tee, reinforcing plate, strengthening pipe section and other branch pipe connection types. It has the outstanding advantages of safety and reliability, reducing cost, simple construction, improving medium flow channel, series standardization, convenient design and selection. Especially in high pressure, high temperature, large diameter, thick wall pipe used increasingly widely, replacing the traditional branch pipe connection method. The body of the branch pipe is made of high-quality forgings, and the material is the same as that of the pipe, including carbon steel, alloy steel, stainless steel, etc. The branch pipe and main pipe are welded, and the branch pipe table and branch pipe or other pipes (such as short pipe, wire plug, etc.), instruments, valves are connected by butt welding, socket welding, thread and other types.

Chemical composition and physical properties of Alloy X/2.4665/N06002

Specification

item	value
Product name	Butt Welded Olet
Material	Alloy X/2.4665/N06002
OD	DN15-1200
Thickness	SCH STD-XXS
Application	Pipe Lines Connect
Standard	ASTM B435 B572 5754 5798
MOQ	1 Piece
Packing	Wooden Box
Brand	NXF

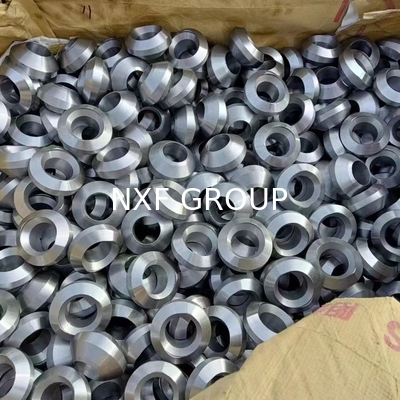

Packing & Delivery

NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet 12

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Applications

NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet 14

Company Profile

NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet 15

Certifications

NXF ASTM B435 B572 5754 5798 Alloy X/2.4665/N06002 DN15-1200 SCH STD-XXS Pipe Fitting Butt Welded Olet 18

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
