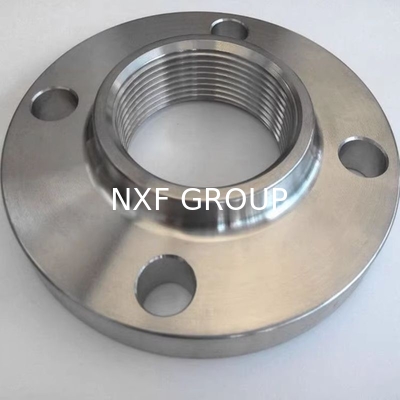

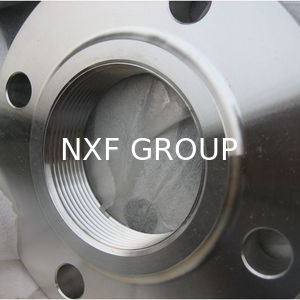

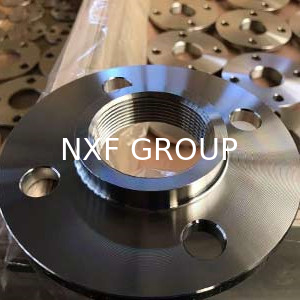

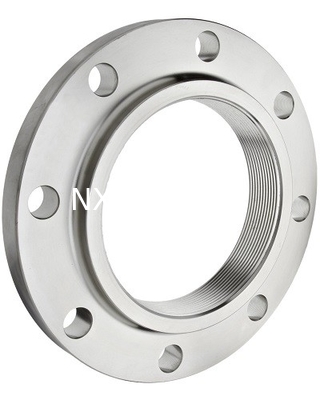

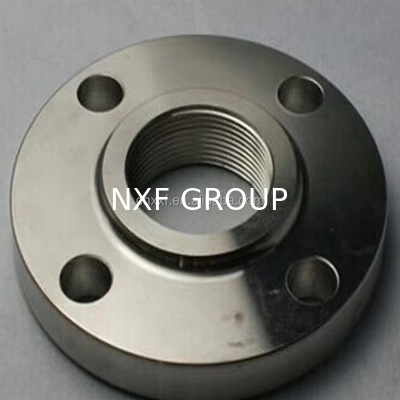

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges

Large Image : NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 works
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Threaded Flanges	Material:	Alloy N/UNS N10003
OD:	DN 15-1200	Pressure:	Class 150-2500
Application:	Industry	Usage:	Oil Gas Water Industrial
MOQ:	1 Piece	Brand:	NXF
Packing:	Wooden Box	Connection Method:	Threaded

Product Description

Alloy N (UNS N10003) is a nickel-base alloy that was invented at Oak Ridge National Laboratories as a container material for molten fluoride salts. It has good oxidation resistance to hot fluoride salts in the temperature range of 1300 to 1600°F (704 to 871°C).HASTELLOY N alloy has good oxidation resistance in air. It shows promise for continuous operations at temperatures up to 1800°F (982°C). Intermittent use at temperatures up to 1900°F (1038°C) may also be possible. No discernible oxidation could be measured for the alloy at temperatures up to 1200°F (649°C).HASTELLOY N alloy can be supplied, to order, in the forms of sheet, plate, and bar.

Threaded flange refers to a flange that is connected to the pipe by threads. When designing, it can be treated as a loose flange. The advantage is that welding is not required, and the additional torque generated on the cylinder or pipe when the flange is deformed is very small. The disadvantage is that the flange is thick and the cost is high. It is suitable for the connection of high-pressure pipelines.Threaded flange is a non-welded flange that has its inner hole processed into pipe threads and is connected to threaded pipes. Compared with flat welding flanges or butt welding flanges, threaded flanges are easy to install and maintain, and can be used on pipelines where welding is not allowed on site. Alloy steel flanges have sufficient strength, but are not easy to weld, or have poor welding performance, so threaded flanges can also be selected. However, when the pipeline temperature changes sharply or the temperature is higher than 260℃ and lower than -45℃, it is recommended not to use threaded flanges to avoid leakage.

Alloy N/UNS N10003 Threaded Flange Drawing

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 0

Alloy N/UNS N10003 of Chemical composition and mechanical properties NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 3

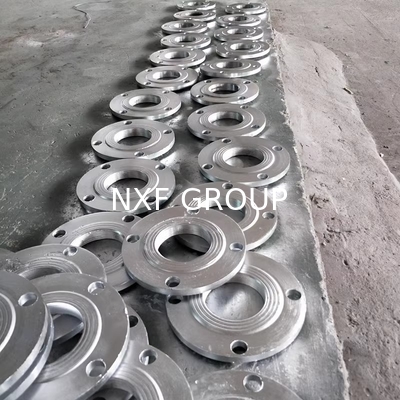

Product processing

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 10

Specification

Shape	Equal
Head Code	Round
Customized support	OEM
Brand Name	NXF
Connection	Threaded
Product name	Threaded Flange
Material	Alloy N/UNS N10003
OD	DN 15-1200
Pressure	Class 150-2500
Application	Industry
Usage	Oil Gas Water Industrial
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 11

Company Profile

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 13

Application Areas

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 16

Certification

NXF DN 15-1200 Class 150-2500 Product Type ASTM B573,ASME SB573,AMS 5771 Alloy N/UNS N10003 Threaded Flanges 17
