NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks

Large Image : NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 works
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Blanks Figure 8 Blanks	Material:	Alloy G-35/UNS N06035
OD:	DN 15-1200	Pressure:	Class 150-2500
Application:	Industry	Usage:	Oil Gas Water Industrial
MOQ:	1 Piece	Brand:	NXF
Packing:	Wooden Box	Connection Method:	Welding

Product Description

Designated as UNS N06035 or DIN 2.4643, Alloy G-35 is a nickel-chrimium-molybdenum alloy designed to resist “wet process” phosphoric acid, which is used in the production of fertilizers. Similar to Hastelloy G-30, G35 alloy also has excellent resistance to localized attack in the presence of chlorides, since this can be a problem beneath deposits in evaporators used to concentrate “wet process” phosphoric acid. Besides, it is much less susceptible to chloride-induced stress corrosion cracking than the stainless steels and nickel-chromium-iron alloys traditionally used in “wet process” phosphoric acid. Due to the high chromium content, Hastelloy G-35 is extremely resistant to other oxidizing acids, such as nitric, and mixtures containing nitric acid. It possesses moderate resistance to reducing acids, as a result of its appreciable molybdenum content, and, unlike other Ni-Cr-Mo alloys, it is very resistant to “caustic de-alloying” in hot sodium hydroxide.

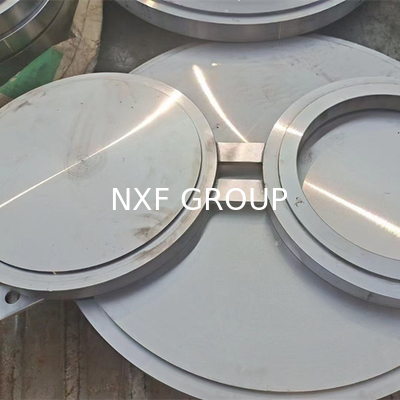

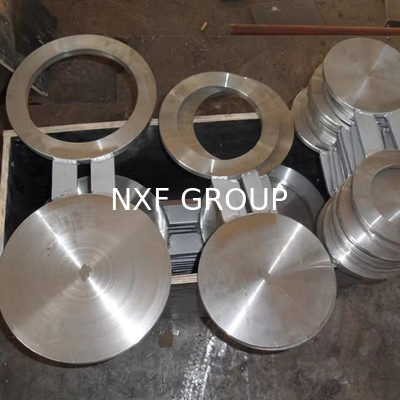

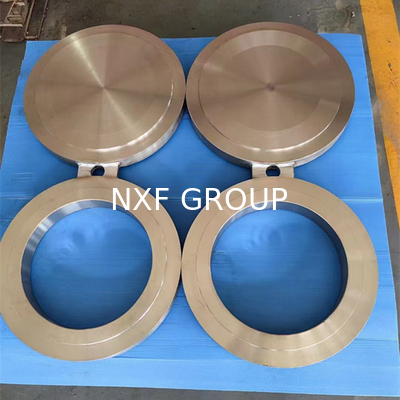

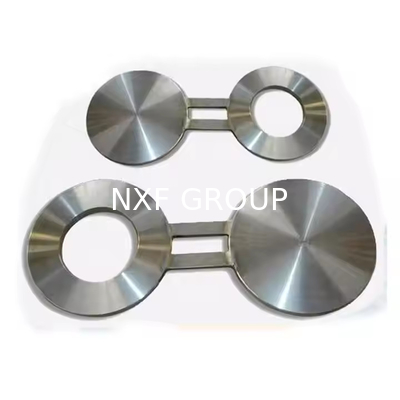

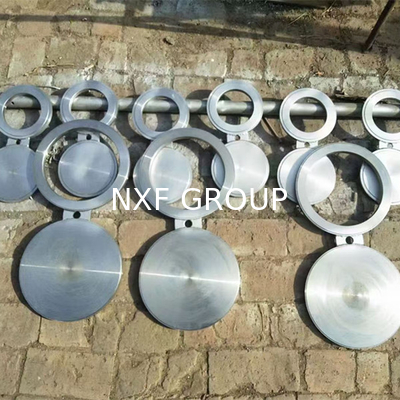

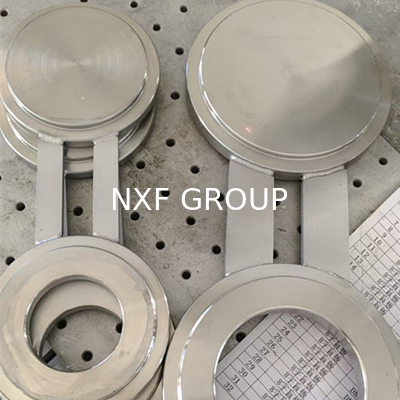

Blanks Figure 8 Blanks Flange is a pipe fitting, which is mainly used for easy maintenance. You can know its specific shape by painting the upper part of the "8" black. It is half a blind plate and half an iron ring. It is often used in pipeline flanges that need to change the process. The main materials are carbon steel, stainless steel, and alloys. It can be selected according to the pipeline pressure level and pipeline medium. It is usually used on pipelines with larger diameters. Usually, one end of the flange is used to occupy the spacing to keep the pipeline unobstructed. When necessary, it is replaced with a blind plate of the same thickness at the other end to cut off the pipeline. Avoid forced expansion of the pipeline due to temporary replacement of other blind plates, affecting the entire system.

Alloy G-35/UNS N06035 of Chemical composition and mechanical properties

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 0

Alloy G-35/UNS N06035 Blanks Figure 8 Blanks Drawing

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 1

Product processing

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 8

Specification

Shape	Equal
Head Code	Round
Customized support	OEM
Brand Name	NXF
Connection	Welding
Product name	Blanks Figure 8 Blanks
Material	Alloy G-35/UNS N06035
OD	DN 15-1200
Pressure	Class 150-2500
Application	Industry
Usage	Oil Gas Water Industrial
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 9

Company Profile

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 11

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 13

Application Areas

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 14

Certification

NXF ANSI/JIS/ASME/ISO/GB DN 15-1200 Class 150-2500 ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Blanks Figure 8 Blanks 15
