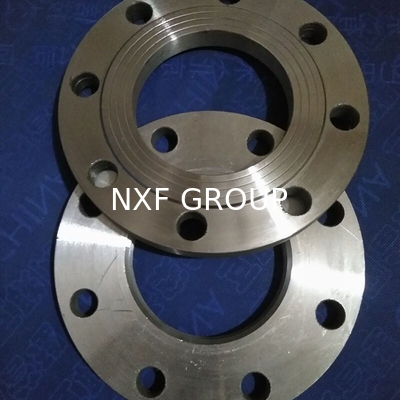

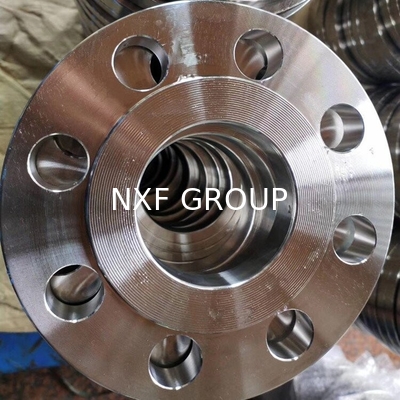

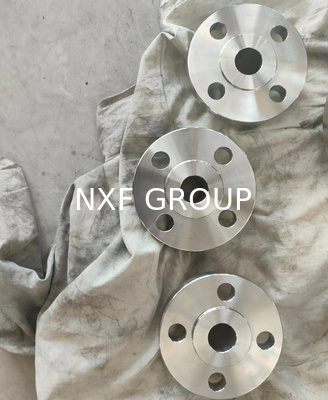

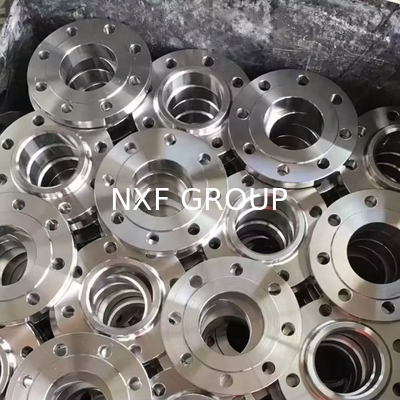

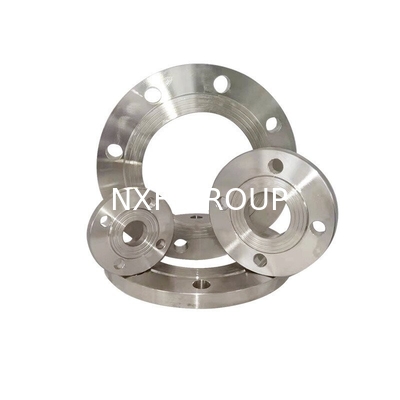

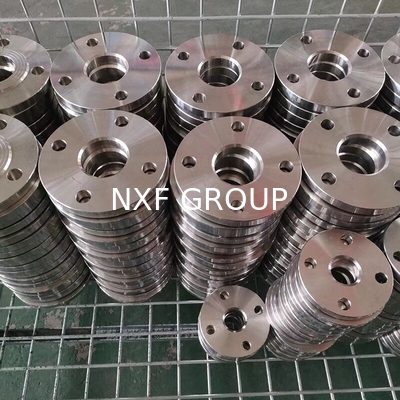

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange

Large Image : NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 works
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Slip-On Flange	Material:	Alloy G-35/UNS N06035
OD:	DN 15-1200	Pressure:	Class 150-2500
Application:	Industry	Usage:	Oil Gas Water Industrial
MOQ:	1 Piece	Brand:	NXF
Packing:	Wooden Box	Connection Method:	Welding

Product Description

Designated as UNS N06035 or DIN 2.4643, Hastelloy G-35 is a nickel-chrimium-molybdenum alloy designed to resist “wet process” phosphoric acid, which is used in the production of fertilizers. Similar to Hastelloy G-30, G35 alloy also has excellent resistance to localized attack in the presence of chlorides, since this can be a problem beneath deposits in evaporators used to concentrate “wet process” phosphoric acid. Besides, it is much less susceptible to chloride-induced stress corrosion cracking than the stainless steels and nickel-chromium-iron alloys traditionally used in “wet process” phosphoric acid. Due to the high chromium content, Hastelloy G-35 is high to other oxidizing acids, such as nitric, and mixtures containing nitric acid. It possesses moderate resistance to reducing acids, as a result of its appreciable molybdenum content, and, unlike other Ni-Cr-Mo alloys, it is very resistant to “caustic de-alloying” in hot sodium hydroxide.

Slip on flange is a common flange type, which has the advantages of simple production, low cost, and easy installation. Its structural feature is that the flange and the pipeline are connected together by welding, and the welding position is generally at the end of the pipeline. Flat welding flange has a simple structure, good flow performance, and can be applied to various media and pressure requirements. It is widely used in pipeline connection and equipment manufacturing.The connection between the flat welding flange and the pipeline is to insert the pipe into the inner hole of the flange to the appropriate position first, and then lap weld. A flat welding butt welding flange is a flange with a neck and a round pipe transition and butt welded to the pipe. Butt welding flanges are not easy to deform, have good sealing, are widely used, have corresponding rigidity and elasticity requirements and reasonable butt welding thinning transition, the weld is far away from the joint surface, and the joint surface is free from welding temperature deformation.

Alloy G-35/UNS N06035 of Chemical composition and mechanical properties

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 0

Alloy G-35/UNS N06035 Slip-On Flange Drawing NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 1

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 8

Product processing

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 10

Specification

Head Code	Round
Customized support	OEM
Connection	Welding
Product name	Slip-On Flange
Material	Alloy G-35/UNS N06035
OD	DN 15-600
Pressure	Class 150-1500
Application	Oil,Gas
Packing	Wooden Box
MOQ	1 Piece
Usage	Oil Gas Water Industrial

Packing & Delivery

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 11

Company Profile

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 13

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 15

Application Areas

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 16

Certification

NXF DN15-1200 Class 150-1500 Product Type Pipe Fittings ASTM B581,ASTM B582,ASTM B619 Alloy G-35/UNS N06035 Slip-On Flange 17
