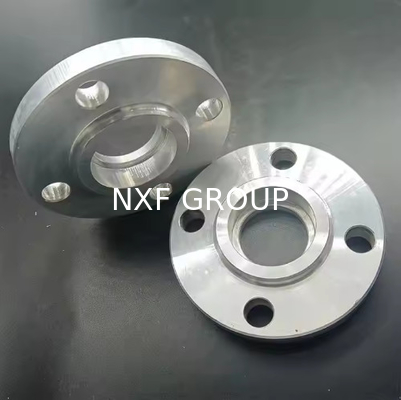

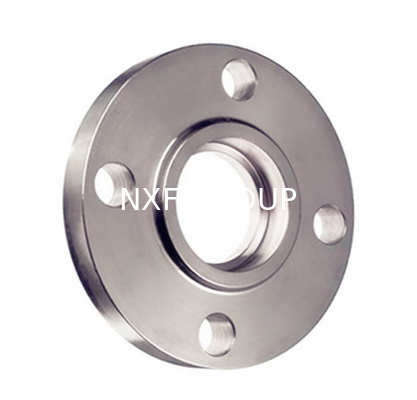

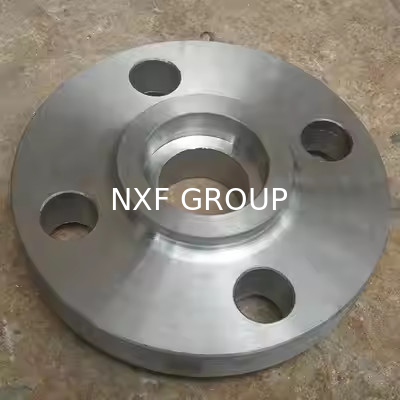

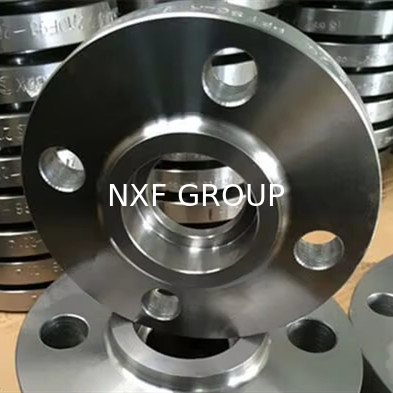

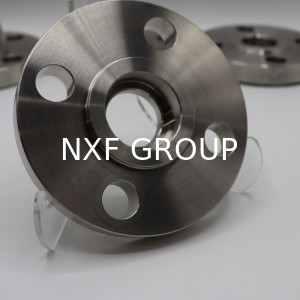

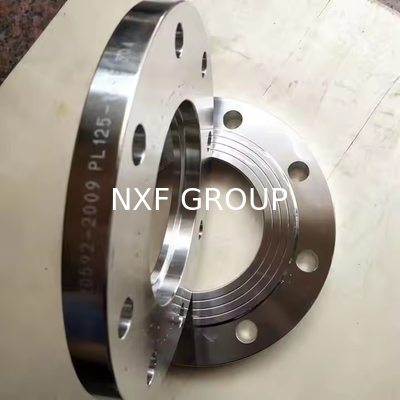

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange

Large Image : NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 works
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	300ton/month

Contact Now

Detailed Product Description

Product Name:	Socket Welding Flange	Material:	Alloy G-35/UNS N06035
OD:	DN 15-1200	Pressure:	Class 150-2500
Application:	Industry	Usage:	Oil Gas Water Industrial
MOQ:	1 Piece	Brand:	NXF
Packing:	Wooden Box	Connection Method:	Welding

Product Description

Designated as UNS N06035 or DIN 2.4643, Alloy G-35 is a nickel-chrimium-molybdenum alloy designed to resist “wet process” phosphoric acid, which is used in the production of fertilizers. Similar to Hastelloy G-30, G35 alloy also has excellent resistance to localized attack in the presence of chlorides, since this can be a problem beneath deposits in evaporators used to concentrate “wet process” phosphoric acid. Besides, it is much less susceptible to chloride-induced stress corrosion cracking than the stainless steels and nickel-chromium-iron alloys traditionally used in “wet process” phosphoric acid. Due to the high chromium content, Hastelloy G-35 is high to other oxidizing acids, such as nitric, and mixtures containing nitric acid. It possesses moderate resistance to reducing acids, as a result of its appreciable molybdenum content, and, unlike other Ni-Cr-Mo alloys, it is very resistant to “caustic de-alloying” in hot sodium hydroxide.

Socket welding flange refers to the flange that the pipe end is inserted into the flange ring step and welded at the pipe end and the outside. There are two types: with neck and without neck. The neck pipe flange has good rigidity, small welding deformation, good sealing, and can be used in occasions with a pressure of 1.0~10.0MPa. The type B flange for containers is also a socket welding flange, which is used in occasions with high sealing requirements. When designing, the socket welding flange can be checked as an integral flange.

Alloy G-35/UNS N06035 of Chemical composition and mechanical properties

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 0

Alloy G-35/UNS N06035 Socket Welding Flange Drawing NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 1

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 7

Product processing

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 9

Specification

Technics	Forged
Head Code	Round
Customized support	OEM
Connection	Welding
Product name	Socket Welding Flange
Material	Alloy G-35/UNS N06035
OD	DN 15-1200
Pressure	Class 150-2500
Usage	Oil Gas Water Industrial
Brand	NXF
MOQ	1 Piece
Packing	Wooden Box

Packing & Delivery

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 10

Company Profile

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 12

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 14

Application Areas

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 15

Certification

NXF DN15-1200 Class150-1500 Type High-End Pipe Fittings ASTM B581,ASTM B582 Alloy G-35/UNS N06035 Socket Welding Flange 16

1. who are we?
We are based in Jiangsu, China, start from 2021,sell to South Asia(30.00%),Eastern Asia(10.00%),Mid East(10.00%),Eastern Europe(10.00%),South America(10.00%),Domestic Market(5.00%),North America(5.00%),Northern Europe(5.00%),Central America(5.00%),Africa(5.00%),Southeast Asia(5.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Pipe,Flange,Steel plate,Pipe fittings,Alloy products

4. why should you buy from us not from other suppliers?
Our advantage:3S Service (Small Quantity/Short Time/Special Material) We have our own factories, quality can be controlled seriously. We Specialize in manufacturing about 21 years. We have professional testing department and testing equipment.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA；
Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
