NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose

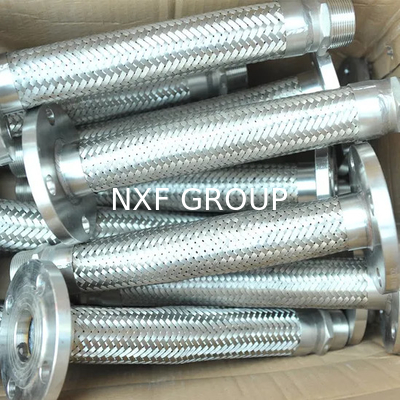

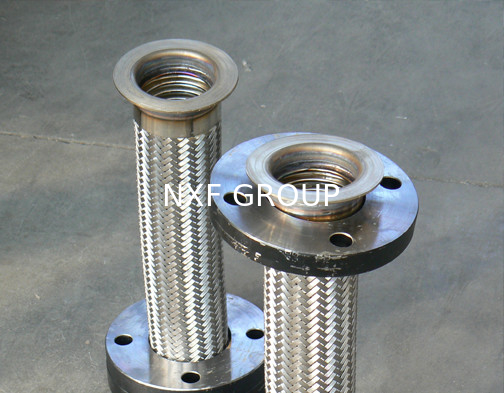

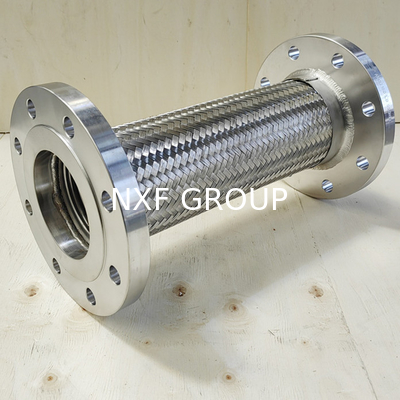

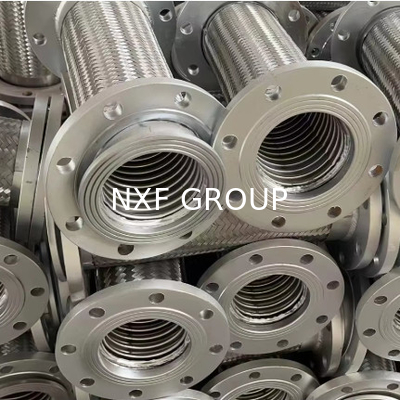

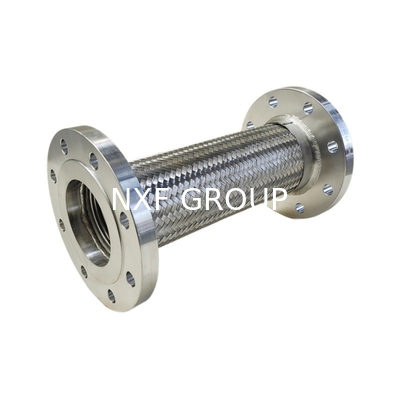

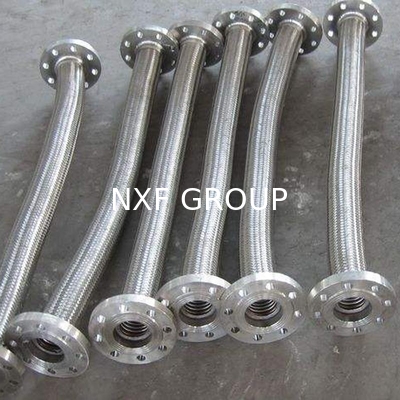

Large Image : NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose

Product Details:

Place of Origin:	China
Brand Name:	NXF
Certification:	ISO CE

Payment & Shipping Terms:

Minimum Order Quantity:	1Piece
Price:	Negotiation
Packaging Details:	Export Packaging
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Contact Now

Detailed Product Description

Product Name:	Flange Metal Hose	Material:	316 Stainless Steel
Head Type:	Round	Surface Treatment:	Whitewash
MOQ:	1 Pcs	Packing:	Wooden Box
Delivery Time:	7-15 Work Days	Sample:	Provide Sample
Brand:	NXF

Product Description

316 stainless steel is a kind of austenitic stainless steel, the addition of Mo element makes its corrosion resistance and high temperature strength have been greatly improved, can withstand 1200-1300 degrees of high temperature, can be used in harsh conditions. The corrosion resistance is better than 304 stainless steel, and it has good corrosion resistance in the process of pulp and paper production. 316 stainless steel also resists the erosion of the sea and aggressive industrial atmospheres. 316 stainless steel tensile strength (Mpa) 520MIN, yield strength (Mpa) 205MIN, elongation (%)30MIN Its main uses are pulp and paper equipment heat exchangers, dyeing equipment, pipelines, building external materials in coastal areas, etc.

HBR-101 stainless steel metal hose has good versatility, wide application range, complete specifications, and is widely used in aviation, aerospace, petroleum, chemical, metallurgy, semiconductor, papermaking, wood, textile, construction, medicine, food, tobacco and other industries. It is resistant to high pressure, corrosion, high temperature and low temperature. Working temperature: -196℃+420℃.

316 Stainless Steel Chemical composition and physical properties NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 0

Flange Metal Hose Dimensions data sheet

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 2

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 7

Specification

Invoicing	by theoretical weight
Standard	JIS
Alloy Or Not	Is Alloy
Delivery Time	7-15 Work days
Steel Grade	300 Series
Application	Construction, agriculture, steam equipment, etc
Welding Line Type	Spiral Welded
Processing Service	Bending, Welding, Decoiling, Punching, Cutting, Moulding
Product name	Flange Metal Hose
Material	316/0Cr17Ni12Mo2/1.4401 Stainless Steel
OD	DN 15-DN 600
Length	200mm-500mm
MOQ	1 Pcs
Packing	Wooden Box
Sample	Provide Samples
Delivery time	7-15 work days
Usage	Construction, agriculture, steam equipment, etc

Packing & Delivery

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 9

Company Profile

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 11

Application Areas

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 14

Certifications

NXF Flex Flexible lined Braided Metal Hose Flange Joint Connector Stainless Steel 316/0Cr17Ni12Mo2 Flange Metal Hose 15
